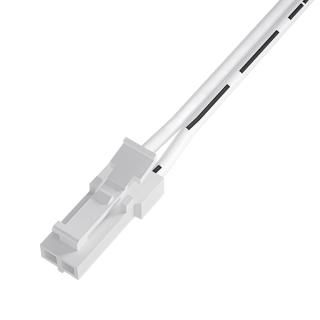

IP20 2 Pin ON2.54(L814) Mini Plug Flat Wire
Brief Info
- Ready-made ON2.54 (L814) mini-plug cable for connecting, extending and splitting a power run.
- Typical uses: furniture lighting such as cabinet, wardrobe and display-case lighting.
- The pigtail type brings out a single male or female connector on one wired end.
- The extender type has a male end and a female end to lengthen a plugged run.
- The splitter type fans one male input out to 2/3/4 female outputs, driving several runs from one supply.
- Supplied as a finished cable assembly with connectors already terminated — no soldering, just plug in.
- Contact us for more details or to check which type suits your wiring.
Specification
Item NO.
WL814M-F20AWW2000
WL814F-F20AWW2000
WL814MF-F20ABR2000
WL814MF-F20ADBK2000
WL814MF-F20AWW2000
WL814-1M2FB-F20ABR150
Connection Type

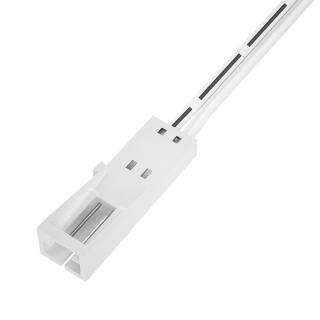

Pigtail
Pigtail

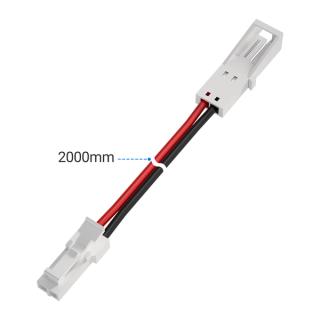

Extender

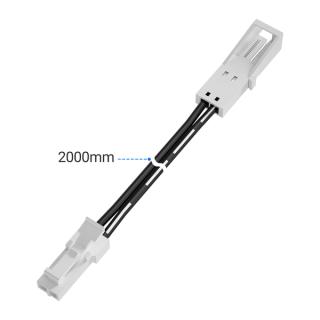

Extender

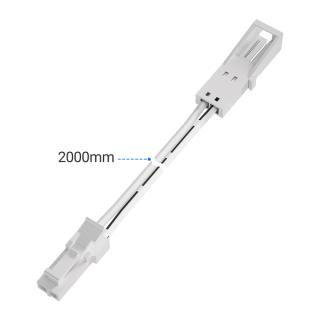

Extender

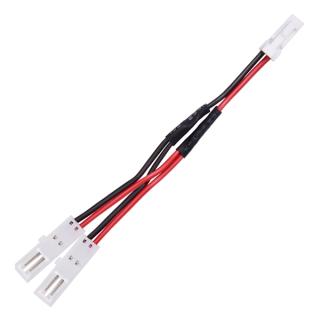

Splitter 1 to 2 (no housing)
Connector Gender
Male
Female
Male, Female
Male, Female
Male, Female
Male, Female
Housing Color
White
White
White
White
White
White
Wire Color
Dual White
Dual White
Black-Red
Dual Black
Dual White
Black-Red
Wire Gauge
20AWG
20AWG
20AWG
20AWG
20AWG
20AWG
Wire Cross Section
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
Wire Length
2000mm
2000mm
2000mm
2000mm
2000mm
150mm
Connector Housing Type
ON2.54(L814), ON2.54(no hook)
Pin QTY.
2 Pins
Wire Type
Flat Parallel
Max Voltage
DC 48V
Max Current
5A
Material
PVC & Copper & Plastic
IP Rating
IP20
Item NO.
WL814-1M2FA-F1822AWW200
WL814-1M3FA-F1822AWW200
WL814-1M4FA-F1822AWW200
Connection Type

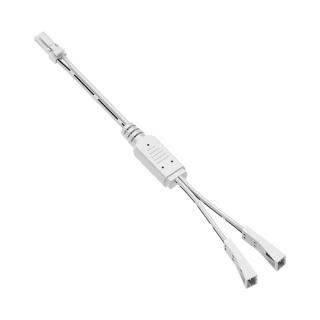

Splitter 1 to 2

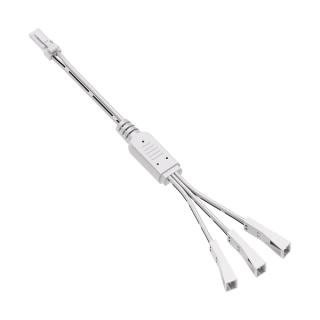

Splitter 1 to 3

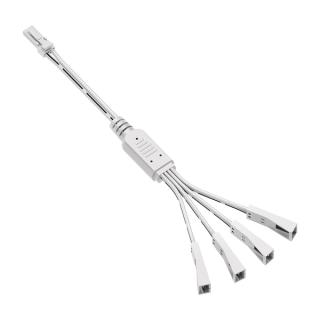

Splitter 1 to 4
Connector Gender
Male, Female
Male, Female
Male, Female
Housing Color
White
White
White
Wire Color
Dual White
Dual White
Dual White
Wire Gauge
Main 18AWG / Branch 22AWG
Main 18AWG / Branch 22AWG
Main 18AWG / Branch 22AWG
Wire Cross Section
Main 0.78mm² / Branch 0.32mm²
Main 0.78mm² / Branch 0.32mm²
Main 0.78mm² / Branch 0.32mm²
Wire Length
200mm
200mm
200mm
Connector Housing Type
ON2.54(L814), ON2.54(no hook)
Pin QTY.
2 Pins
Wire Type
Flat Parallel
Max Voltage
DC 48V
Max Current
5A
Material
PVC & Copper & Plastic
IP Rating
IP20
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
