IP20 2 Pin ON2.54(L813) Mini Plug Jacket Wire
Brief Info
- Ready-made ON2.54 (L813) mini-plug cable in jacketed wire, for connecting and extending a power run.
- Typical uses: furniture lighting such as cabinet, wardrobe and display-case lighting.

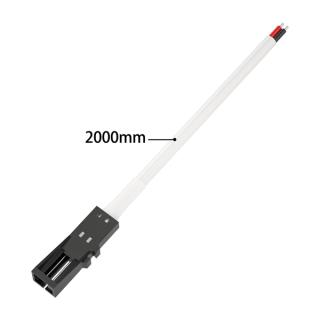

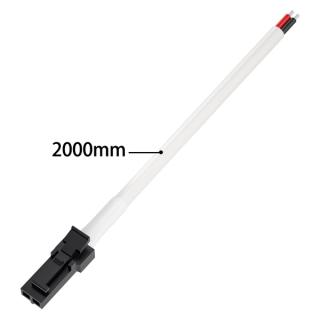

- The pigtail type brings out a single male or female connector on one wired end.

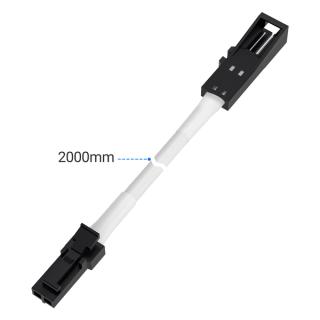

- The extender type has a male end and a female end to lengthen a plugged run.
- Supplied as a finished cable assembly with connectors already terminated — no soldering, just plug in.
- Contact us for more details or to check which type suits your wiring.
Specification
Item NO.
HL813M-J2W2P22ABR2000
HL813F-J2W2P22ABR2000
HL813MF-J2W2P22ABR2000
Connection Type
Pigtail
Pigtail
Extender
Connector Gender
Male
Female
Male, Female
Housing Color
Black
Black
Black
Wire Color
White Jacket, Black-Red Core
White Jacket, Black-Red Core
White Jacket, Black-Red Core
Wire Gauge
22AWG
22AWG
22AWG
Wire Cross Section
0.32mm²
0.32mm²
0.32mm²
Wire Length
2000mm
2000mm
2000mm
Connector Housing Type
ON2.54(L813), ON2.54(no hook)
Pin QTY.
2 Pins
Wire Type
Flat Sheathed
Max Voltage
DC 48V
Max Current
5A
Material
PVC & Copper & Plastic
IP Rating
IP20
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
