5A Flex PCB Dimmable Touch Switch Module

5A Flex PCB Dimmable Touch Switch Module

Brief Info

  • A trimmable flexible-PCB touch dimmer module for higher-power runs, rated 5A on a single channel and mounted inline with your LED strip.
  • Typical uses: long cabinet and shelf runs, in-channel switching for aluminium profiles, 24V high-power furniture lighting, single-switch control of a full-length strip.
  • At 5A on one channel it drives up to 120W at 24V - a longer run than the 3.5A version, so you do not have to split a long strip across several switches.
  • Trim the board to width - a 10mm part cuts down to 8mm - so one item number covers several strip and profile widths.
  • Short touch to switch on/off, long press to dim with no lag; kit versions ship with a 150mm input wire already soldered on, ready to wire up.
  • Contact us for more details or to check compatibility with your LED strips.

Specification

Item NO.
FDTSM-T8A-K1
FDTSM-T8A-F20ABR150-K3
FDTSM-T10A-K1
FDTSM-T10A-F20ABR150-K3
Description

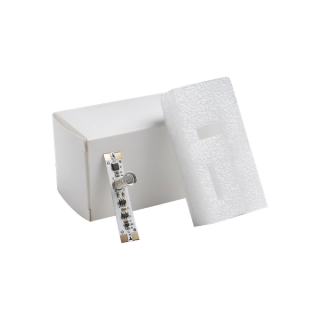

1 PCS Touch Switch & Dimming Dual Side Flexbile PCBDC5~24V / 5A Input voltage =output voltage 5%~100% brightness dimmable Package: box 40*40*60mm

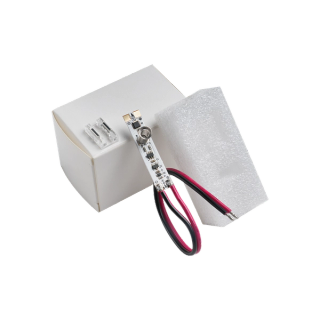

1 PCS Touch Switch & Dimming Dual Side Flexbile PCB 20AWG 150mm Wire soldered DC5~24V / 5A Input voltage =output voltage 5%~100% brightness dimmable 1 PC BCI8BB-2 1 PC Instruction Box Size 40*40*60mm

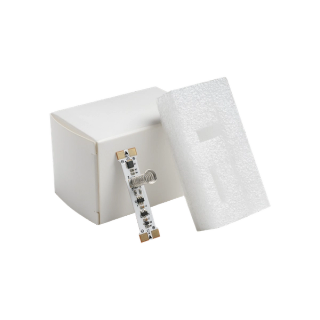

1 PCS Touch Switch & Dimming Dual Side Flexbile PCBDC5~24V / 5A Input voltage =output voltage 5%~100% brightness dimmable Package: box 40*40*60mm

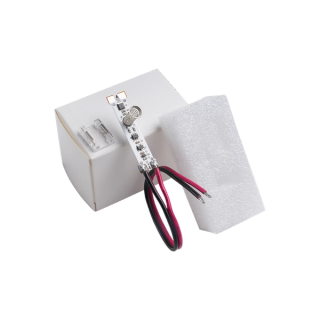

1 PCS Touch Switch & DimmingDual Side Flexbile PCB 20AWG 150mm Wire solderedDC5~24V / 5A Input voltage =output voltage 5%~100% brightness dimmable 1 PC BCI10BB-2 1 PC Instruction Box Size 40*40*60mm
PCB Size
40*8mm
40*8mm
40*10mm
40*10mm
Way of Sense
Touch
Height
8.6mm (include spring)
Working Voltage
DC5~24V (Input=Output)
Max Current
5A
Max Power
5V-25Watt; 12V-60Watt; 24V-120Watt
Output Channel NO.
1 Channel
Applicable Light Color
Mono Color
Brightness Dimmable Range
5%~100%
PWM Frequency
20KHz
Dimming Trigger
Long Press for 1 Second
Dimming Type
Cycle Dimming
Material
Copper
Electrical Protection
Reverse Protection

Interested in this product?

Contact us for pricing and technical support
