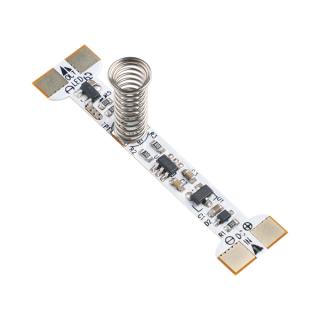

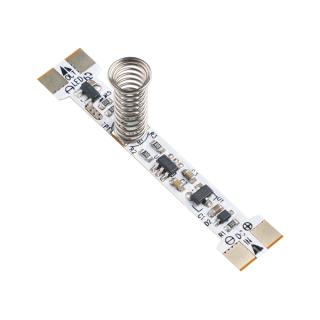

3.5A Flex PCB Dimmable Touch Switch Module

3.5A Flex PCB Dimmable Touch Switch Module

Brief Info

  • A trimmable flexible-PCB touch dimmer module that mounts inline with your LED strip - as narrow as 5mm, so it fits inside an aluminium channel.
  • Typical uses: in-channel switching for aluminium profiles, cabinet and wardrobe strips, bedside and bedroom accent lighting, built-in furniture lighting.
  • Trim the board to width: one item number covers strip and profile widths from 5mm to 10mm, so you do not stock a separate part for each size.
  • Short touch to switch on/off, long press to dim - with no lag on either; with the output off, hold for 5 seconds to turn the indicator LED off for bedrooms.
  • The flexible board sits at the same height as the strip, so it clamps into a solderless connector or solders straight on without raising the run.
  • Contact us for more details or to check compatibility with your LED strips.

Specification

Item NO.
FDTSM-T5
FDTSM-T5-K1
FDTSM-T5-K2
FDTSM-T6
FDTSM-T6-K1
FDTSM-T6-K2
Description

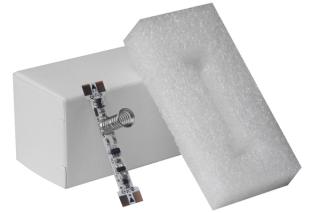

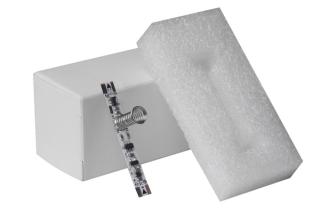

no connectors foam panel package 40 PCS/Package

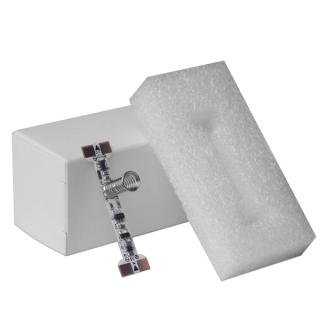

no connectors box+foam package 1pc/box

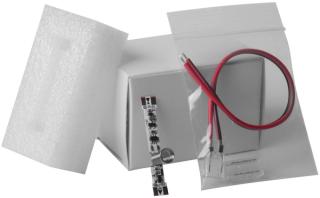

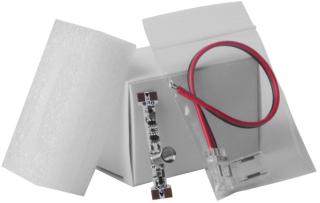

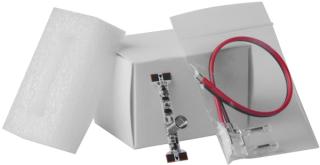

with connectors box+foam package Includes: 1 PC FDTSM-T5 1 PC BCI5XB-2W 1 PC BCI5BB-2 1 PC Instruction

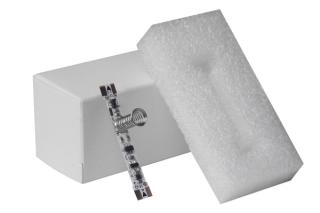

no connectors foam panel package 40 PCS/Package
no connectors box+foam package 1pc/box

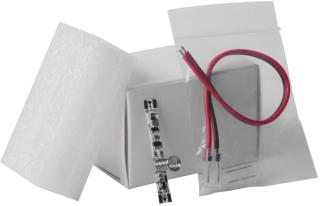

with connectors box+foam package Includes: 1 PC FDTSM-T6 1 PC BCI6XB-2W 1 PC BCI6BB-2 1 PC Instruction
PCB Size
40*5mm
40*5mm
40*5mm
40*6mm
40*6mm
40*6mm
Way of Sense
Touch
Height
8.6mm (include spring)
Working Voltage
DC5~24V (Input=Output)
Max Current
3.5A
Max Power
5V-17.5Watt; 12V-42Watt; 24V-84Watt
Output Channel NO.
1 Channel
Applicable Light Color
Mono Color
Brightness Dimmable Range
5%~100%
PWM Frequency
20KHz
Dimming Trigger
Long Press for 1 Second
Dimming Type
Cycle Dimming
Material
Copper
Electrical Protection
Reverse Protection
Item NO.
FDTSM-T8
FDTSM-T8-K1
FDTSM-T8-K2
FDTSM-T10
FDTSM-T10-K1
FDTSM-T10-K2
Description
no connectors foam panel package 40 PCS/Package
no connectors box+foam package 1pc/box
with connectors box+foam package Includes: 1 PC FDTSM-T8 1 PC BCI8XB-2W 1 PC BCI8BB-2 1 PC Instruction
no connectors foam panel package 40 PCS/Package
no connectors box+foam package 1pc/box
with connectors box+foam package Includes: 1 PC FDTSM-T10 1 PC BCI10XB-2W 1 PC BCI10BB-2 1 PC Instruction
PCB Size
40*8mm
40*8mm
40*8mm
40*10mm
40*10mm
40*10mm
Way of Sense
Touch
Height
8.6mm (include spring)
Working Voltage
DC5~24V (Input=Output)
Max Current
3.5A
Max Power
5V-17.5Watt; 12V-42Watt; 24V-84Watt
Output Channel NO.
1 Channel
Applicable Light Color
Mono Color
Brightness Dimmable Range
5%~100%
PWM Frequency
20KHz
Dimming Trigger
Long Press for 1 Second
Dimming Type
Cycle Dimming
Material
Copper
Electrical Protection
Reverse Protection
