Home > LED Light Strip Connector > Outdoor Solid - For IP67/IP68 SMD > 10mm PCB/12mm Tube 2 Pin High Density Hippo-m Solid/COB for IP68
SDN10-2G
SDN10-2G

10mm PCB/12mm Tube 2 Pin High Density Hippo-m Solid/COB for IP68

Customization Options: Package, Wire, Adapter and more

Brief Info

  • Types: Strip to Strip Joint, Strip to Power, Strip to Strip Bridge
  • Applicable Strip:  IP68 Solid Tube/ IP68 COB strip
  • Workable PCB Type: Flexible
  • Workable Wire: 20 AWG/0.52 mm2
  • Certificate: CE, RoHS, Reach
Send Inquiry
  • share
QuoteSend Inquiry

Options



Model NO. Types Connective Position
SDN10BB-2G Strip to Strip Joint for IP68 Between strip and strip
SDN10XB-2GW200 Strip to Power for IP68 One connector with 200mm 20AWG wire
SDN10BXB-2GW200 Strip to Strip Bridge for IP68 Between two connector with 200mm 20AWG wire
SDN10XB-2GW500 Strip to Power for IP68 One connector with 500mm 20AWG wire
SDN10BXB-2GW500 Strip to Strip Bridge for IP68 Between two connector with 500mm 20AWG wire
SDN10XB-2GW1000 Strip to Power for IP68 One connector with 1000mm 20AWG wire
SDN10BXB-2GW1000 Strip to Strip Bridge for IP68 Between two connector with 1000mm 20AWG wire



Technical Data

Part NO. Type Voltage/Current Strip Width Pin NO. Size Material Wire Spec Wire Fixed Color
SDN10BB-2G Strip to Strip Joint 3~24V/5A 10mm 2 Pins 40*17.5*8.5mm Polycarbonate, ABS / No wire Transparent&White
SDN10XB-2GW200 Strip to Power 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Polycarbonate, ABS, PVC 200mm 20AWG/0.52mm2 With wire Transparent&White
SDN10BXB-2GW200 Strip to Strip Bridge 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Polycarbonate, ABS, PVC 200mm 20AWG/0.52mm2 With wire Transparent&White
SDN10XB-2GW500 Strip to Power 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Polycarbonate, ABS, PVC 500mm 20AWG/0.52mm2 With wire Transparent&White
SDN10BXB-2GW500 Strip to Strip Bridge 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Polycarbonate, ABS, PVC 500mm 20AWG/0.52mm2 With wire Transparent&White
SDN10XB-2GW1000 Strip to Power 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Polycarbonate, ABS, PVC 1000mm 20AWG/0.52mm2 With wire Transparent&White
SDN10BXB-2GW1000 Strip to Strip Bridge 3~24V/3.5A 10mm 2 Pins 28*17.5*8.5mm Polycarbonate, ABS, PVC 1000mm 20AWG/0.52mm2 With wire Transparent&White



How to use

Strip to strip bridge/Strip to power Strip to strip joint

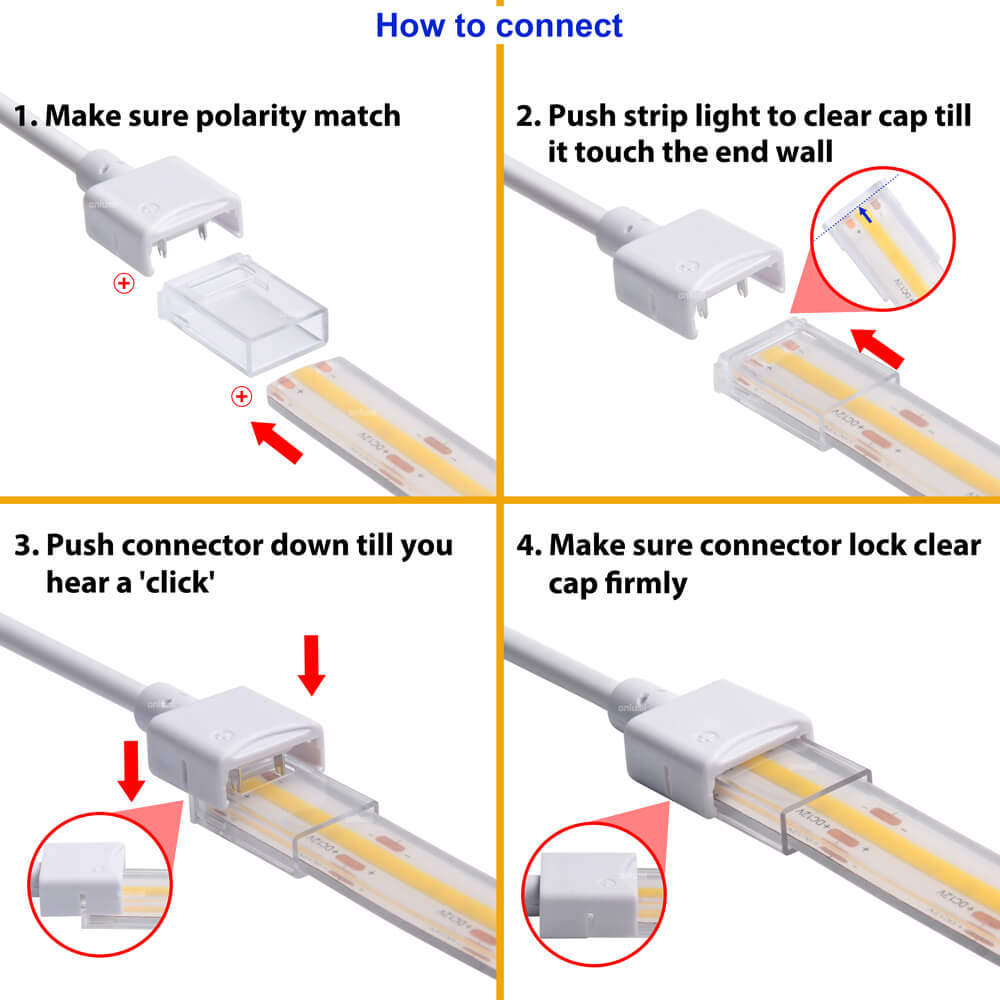

how to connect COB LED Strip IP68 waterproof strip to power
How to connect COB LED Strip IP68 waterproof strip to power

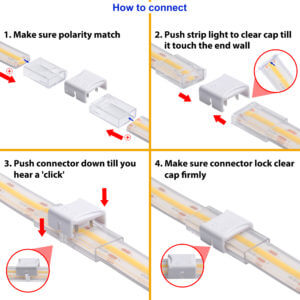

how to connect COB LED Strip IP68 waterproof strip to strip
How to connect COB LED Strip IP68 waterproof strip to strip



Certificates

Title Language Size Type
AST1911201005LVD--Hippo-M Solid CE-LVD Certification
 English 347kb pdf
AST1911201005LVD--Hippo-M Solid CE-LVD Certification
 English 347kb pdf
AST1911203002RoHS--Hippo-M Solid CE-ROHS Certification
 English 367kb pdf

Package Options

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White Box​White Box​Hanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
