10mm PCB / 12.5mm Tube 2 Pins for IP67 SMD Mono
Users can assemble WireSupport CustomizationPierce to ContactSurface Contact
Brand:No BrandQIJIE
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info

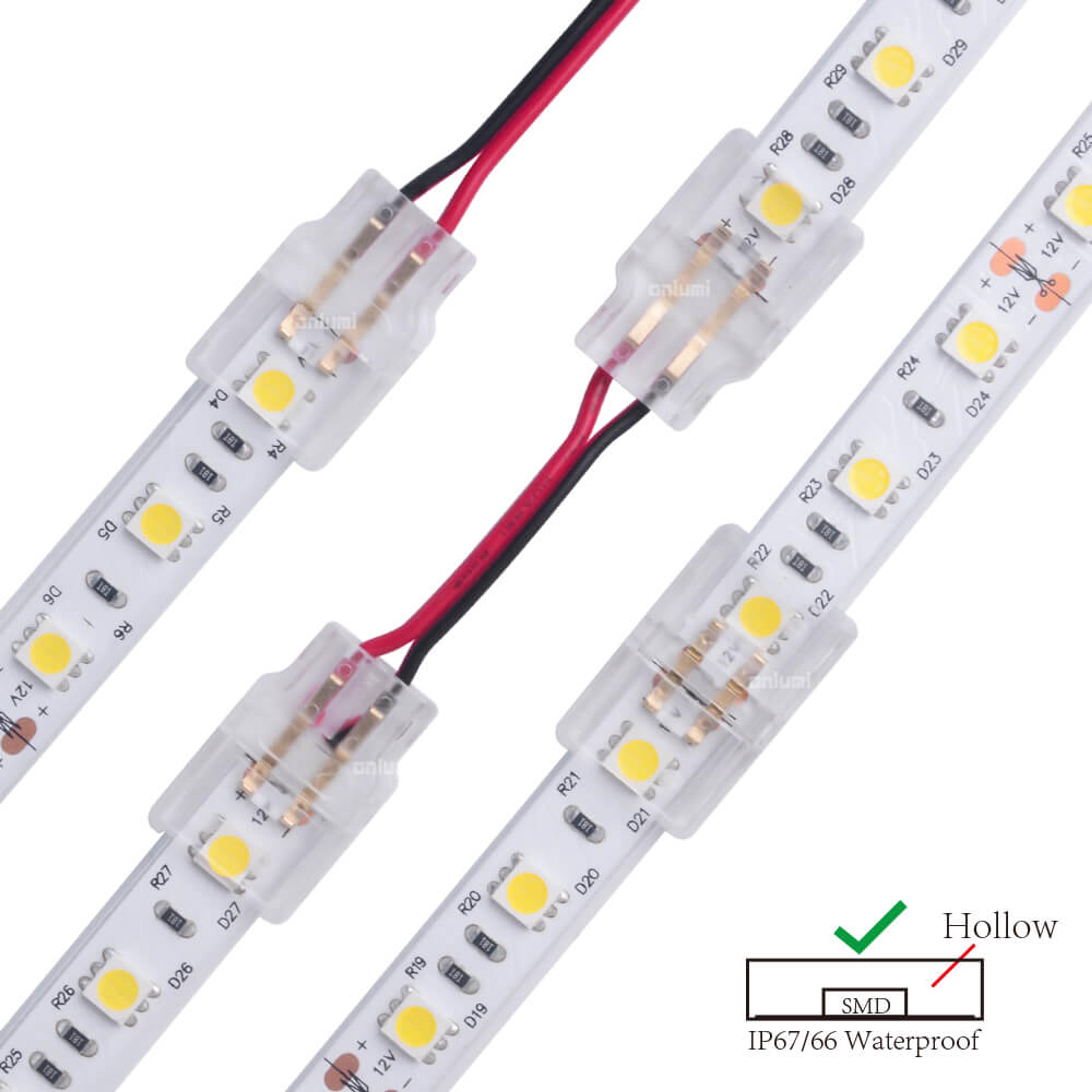

- Hippo-M outdoor waterproof connector for 10mm mono LED strips in hollow tubes.
- Typical uses: architectural outline lighting, garden and landscape strips, outdoor linear lighting.
- Works with compatible wire of your own, so length and routing can be set on site to suit the job.
- Designed for SMD LED strips in extruded hollow waterproof tubes.
- Surface contact on the strip side leaves the copper undamaged; the wire side pierces the insulation, so no stripping is needed.
- For outdoor use, seal with glue for extra protection — the housing has a dedicated glue-filling hole.
- Four connection types in total: strip-to-wire, strip-to-strip joint, strip-to-power and strip-to-strip bridge.
- Ships without wire by default; a pre-wired version is also available to order.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
FSN10XB-2
FSN10BB-2
FSN10XB-2W
FSN10BXB-2W
—
—
Series Name
Outdoor Hollow
LED Strip Width
10mm PCB / 12.5mm Tube
Pin Quantity
2 Pins
Connection Type
Strip to Wire
Strip to Strip Joint
Strip to Power
Strip to Strip Bridge
Contact Method
Surface Contact, Pierce Contact
Shape of Connection
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
I Shape (Straight)
LED Strip IP Rating
IP67 (Extruded Hollow Tube)
LED Light Type
SMD
SMD
SMD
SMD
LED Strip Color
Mono
LED Density
≤120 LEDs/m
Max Working Voltage
DC24V
Max Working Current
2 OZ: 3.5A, 3 OZ: 4.5A
2 OZ: 2.5A, 3 OZ: 3.5A
2 OZ: 3.5A, 3 OZ: 4.5A
2 OZ: 3.5A, 3 OZ: 4.5A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
Wire Gauge
18~22AWG
/
20AWG
20AWG
Wire Cross Section
0.32~0.78mm²
/
0.52mm²
0.52mm²
Standard Wire Length
/
/
150mm
150mm
Wire Attached
No wire
No wire
With wire
With wire
Wire Color Order
/
/
Black-Red
Black-Red
LED Strip PCB Thickness
0.2~0.35mm
LED Strip PCB Type
Flexible
Material
Polycarbonate, Copper
Polycarbonate, Copper
Polycarbonate, Copper, PVC
Polycarbonate, Copper, PVC
Housing Size
26*17*7mm
27*17*7mm
26*17*7mm
26*17*7mm
Housing Color
Transparent
Transparent
Transparent
Transparent
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
