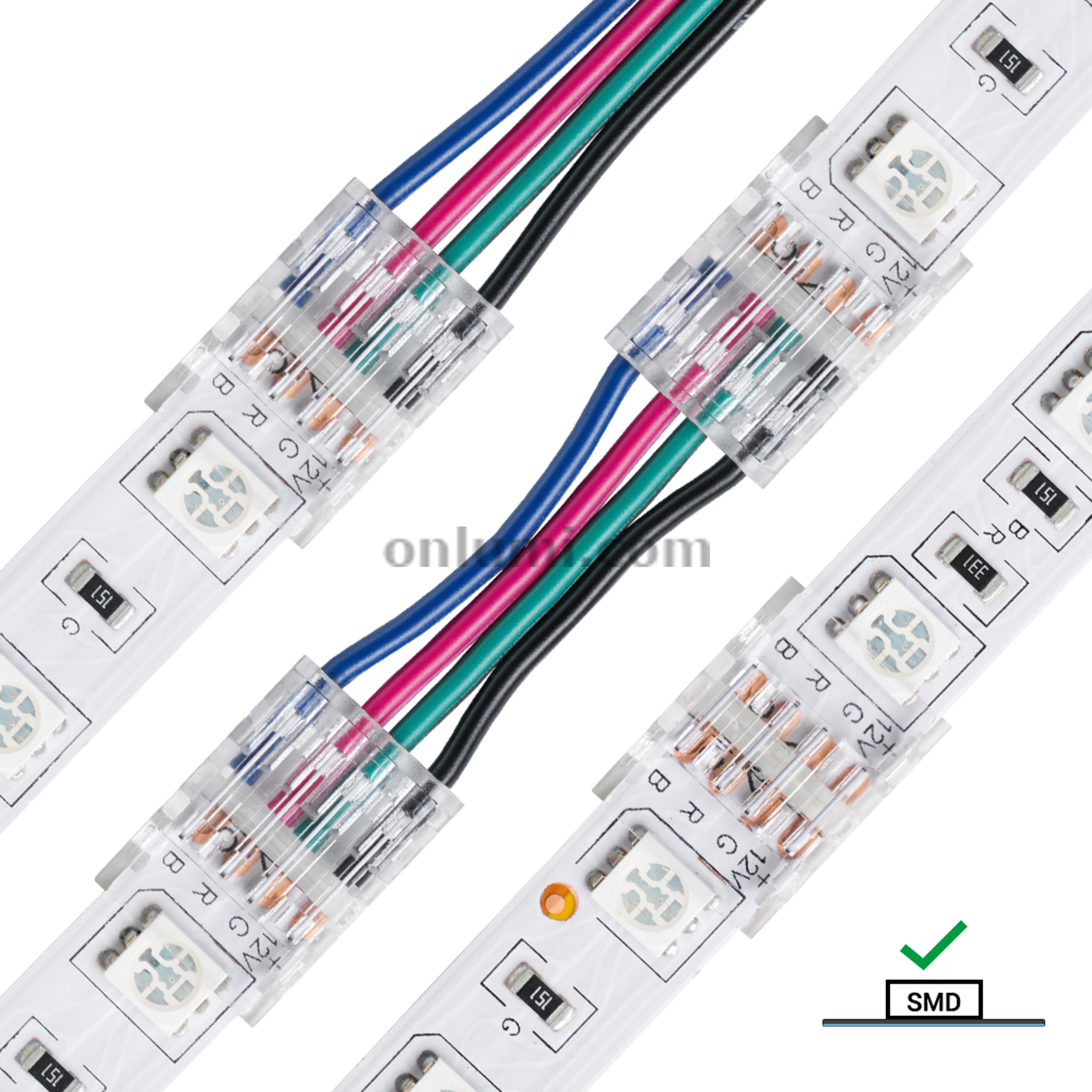

10mm 4 Pins LED Strip Connector for SMD RGB-Hippo-M Mini

10mm 4 Pins for IP20 SMD RGB

For IP20 2~6 PinsSupport CustomizationPierce to Contact

Brand:No BrandQIJIE

MOQ:contact us for more details about MOQ

Customizable Options:WirePackageLabelConnector

Brief Info

Slim solderless connector for 10mm SMD RGB LED strips.
Typical uses: RGB ambient and backlighting, retail-display and entertainment spaces.
Solderless — a standard crimping plier is all it takes to fit.
A slim housing fits narrow spaces such as aluminium profiles and furniture grooves.
Three connection types in total: strip-to-strip joint, strip-to-power and strip-to-strip bridge.
Contact us for more details or to check compatibility with your LED strips.

Specification

Item NO.

MN20-B10-4P

MN20-X10-4PW-F22ABKGRB150

MN20-BXB10-4PW-F22ABKGRB150


Series Name

Hippo-M MINI

LED Strip Width

10mm

Pin Quantity

4 Pins

Connection Type

Strip to Strip Joint

Strip to Power

Strip to Strip Bridge

Contact Method

Pierce Contact

Shape of Connection

I Shape (Straight)

LED Strip IP Rating

IP20 (Non-waterproof)

LED Light Type

SMD

LED Strip Color

RGB

LED Density

Depends on SMD Size

Max Working Voltage

DC48V

Max Working Current

2 OZ: 2A, 3 OZ: 2.5A

2 OZ: 3A, 3 OZ: 3.5A

Current Note

max currents depend on multiple factors, pls contact us for more details working on your LED strips

Wire Gauge

22AWG

Wire Cross Section

0.32mm²

Standard Wire Length

150mm

Wire Attached

No wire

With wire

Wire Color Order

Black-Green-Red-Blue

LED Strip PCB Thickness

0.25~0.35mm

LED Strip PCB Type

Flexible

Pin Pitch

COB: 6.5mm & 1.5mm; SMD: 3.5mm

Material

Polycarbonate, Phosphor bronze

Pin Surface Treatment

Nickel plating

Housing Size

16.5*11.7*4.3mm

Housing Color

Transparent

Available Package

Normal Bag

Box

Hanging Head

Face Seal Blister

Clamshell Blister
