Tuya WiFi Bluetooth Mini Controller CTL-AA Mono/CCT/RGB/RGBW/RGBCCT
Brief Info
- Mini LED strip controller for the Tuya / Smart Life ecosystem, with five light colours on one page.
- Typical uses: residential mood lighting, hotel guest rooms, retail display areas.
- Five applicable light colours: mono, tunable white, RGB, RGBW and RGB+CCT.
- Each colour comes in three wiring options: DC5521 female or open-wire input, with or without bundled strip connectors.
- Control it over the internet even when your phone is not on the same WiFi; Alexa and Google Assistant voice control supported.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.

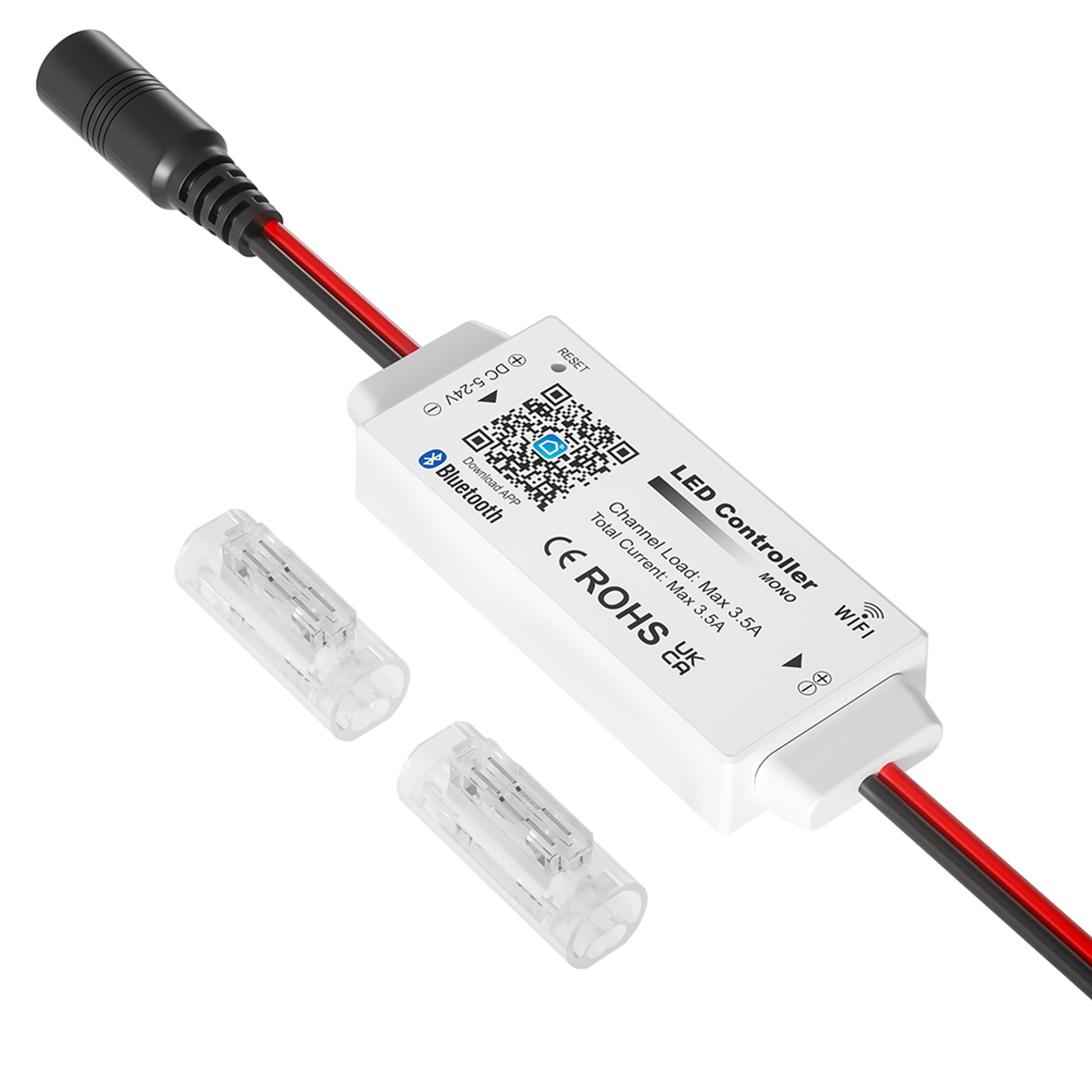

CTL-AAW-MONO-34
CTL-AAW-MONO-34-01
CTL-AAW-MONO-34-02

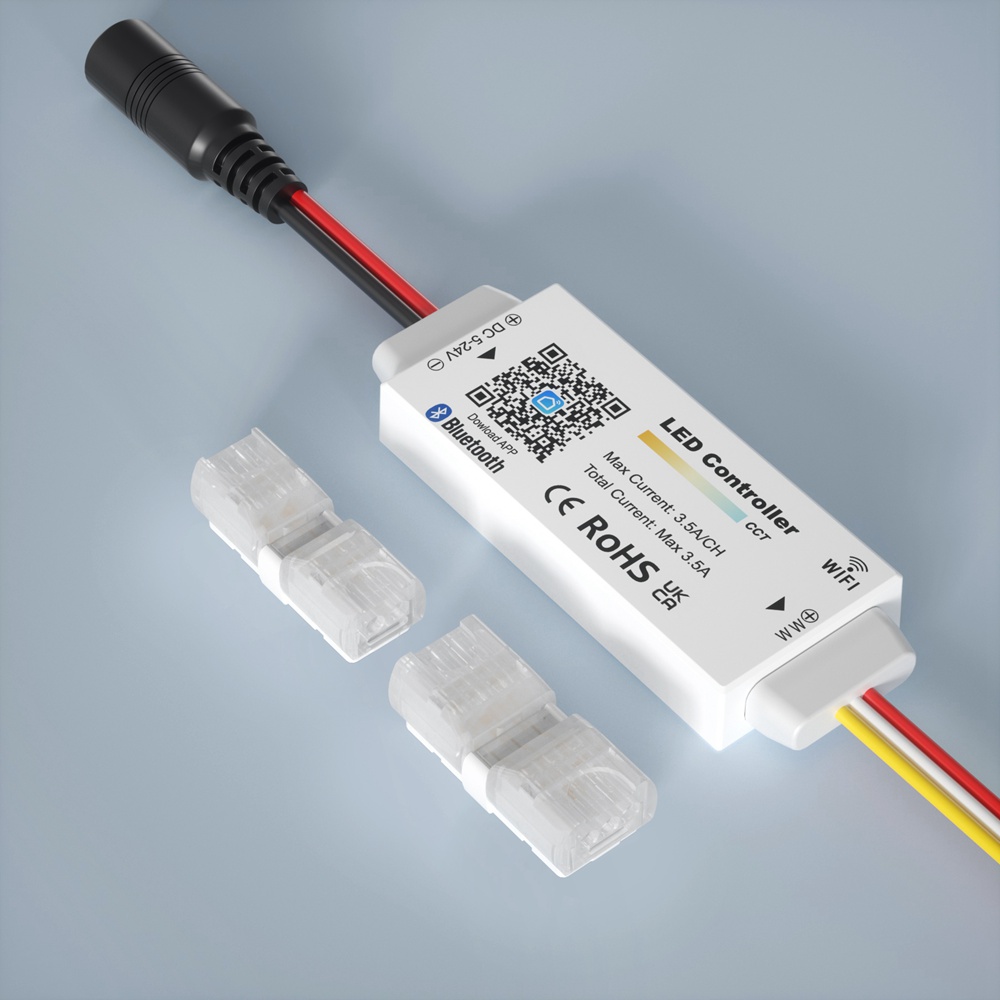

CTL-AAW-CCT-34
CTL-AAW-CCT-34-01
CTL-AAW-CCT-34-02
Applicable Light Color
Mono Color
Mono Color
Mono Color
CCT Color
CCT Color
CCT Color
Output Channel NO.
1 Channel
1 Channel
1 Channel
2 Channel
2 Channel
2 Channel
Output Voltage
DC5~24V
Output Type
Constant Voltage
Max Current
3.5A (20AWG Wire)
Max Power
5V-17.5Watt; 12V-42Watt; 24V-84Watt
Grey Level
255
Brightness Dimmable Range
5%~100%
PWM Frequency
20KHz
Circuit Protection
Reverse Polarity Protection, Overload Protection
Polarity
Common Anode
Bluetooth Version
Bluetooth 5.2
WIFI Frequency
2.4GHz
Input Connector
DC5521 / ON2.54 / Open Wire or Customized
Input Wire
DC5521 Female Input
Open Wire
Open Wire
DC5521 Female Input
Open Wire
Open Wire
Output Wire
Open Wire
Accessories
2 PCS of WJX-CC2-2022
2 PCS of WJX-CC2-2022
No Accessories
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC3-2022
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC3-2022
No Accessories
Input Wire Color
Black-Red
Output Wire Color
Black-Red
Black-Red
Black-Red
Red-White-Yellow
Red-White-Yellow
Red-White-Yellow
Wire Length
150mm
Wire Gauge
20AWG / 0.52 mm²
Item NO.
CTL-AAW-RGB-34
CTL-AAW-RGB-34-01
CTL-AAW-RGB-34-02
CTL-AAW-RGBW-34
CTL-AAW-RGBW-34-01
CTL-AAW-RGBW-34-02
Applicable Light Color
RGB Color
RGB Color
RGB Color
RGBW Color
RGBW Color
RGBW Color
Output Channel NO.
3 Channel
3 Channel
3 Channel
4 Channel
4 Channel
4 Channel
Output Voltage
DC5~24V
Output Type
Constant Voltage
Max Current
3.5A (20AWG Wire)
Max Power
5V-17.5Watt; 12V-42Watt; 24V-84Watt
Grey Level
255
Brightness Dimmable Range
5%~100%
PWM Frequency
20KHz
Circuit Protection
Reverse Polarity Protection, Overload Protection
Polarity
Common Anode
Bluetooth Version
Bluetooth 5.2
WIFI Frequency
2.4GHz
Input Connector
DC5521 / ON2.54 / Open Wire or Customized
Input Wire
DC5521 Female Input
Open Wire
Open Wire
DC5521 Female Input
Open Wire
Open Wire
Output Wire
Open Wire
Accessories
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC4-2022
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC4-2022
No Accessories
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC5-2022
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC5-2022
No Accessories
Input Wire Color
Black-Red
Output Wire Color
Black-Green-Red-Blue
Black-Green-Red-Blue
Black-Green-Red-Blue
Black-Green-Red-Blue-White
Black-Green-Red-Blue-White
Black-Green-Red-Blue-White
Wire Length
150mm
Wire Gauge
20AWG / 0.52 mm²
Item NO.
CTL-AAW-RGBCCT-34
CTL-AAW-RGBCCT-34-01
CTL-AAW-RGBCCT-34-02
Applicable Light Color
RGB+CCT (RGBWW) Color
RGB+CCT (RGBWW) Color
RGB+CCT (RGBWW) Color
Output Channel NO.
5 Channel
5 Channel
5 Channel
Output Voltage
DC5~24V
Output Type
Constant Voltage
Max Current
3.5A (20AWG Wire)
Max Power
5V-17.5Watt; 12V-42Watt; 24V-84Watt
Grey Level
255
Brightness Dimmable Range
5%~100%
PWM Frequency
20KHz
Circuit Protection
Reverse Polarity Protection, Overload Protection
Polarity
Common Anode
Bluetooth Version
Bluetooth 5.2
WIFI Frequency
2.4GHz
Input Connector
DC5521 / ON2.54 / Open Wire or Customized
Input Wire
DC5521 Female Input
Open Wire
Open Wire
Output Wire
Open Wire
Accessories
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC6-2022
1 PC of WJX-CC2-2022 + 1 PC of WJX-CC6-2022
No Accessories
Input Wire Color
Black-Red
Output Wire Color
Black-Green-Red-Blue-White-Yellow
Black-Green-Red-Blue-White-Yellow
Black-Green-Red-Blue-White-Yellow
Wire Length
150mm
Wire Gauge
20AWG / 0.52 mm²
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
