IP67 IP68 LED Strip Clips
Brief Info
- Mounting clip for IP67/IP68 flexible LED strip - the sleeved type used outdoors and in wet areas.
- Typical uses: facade and landscape lighting, pool and deck surrounds, wet-location cove lighting.
- Two constructions share this page: a rigid clear clip held by a single screw, and a soft silicone clip held by two screws.
- The silicone version flexes around the sleeve, so it grips without crushing the tube on curved or uneven runs.
- Sizes here follow the outer diameter of the sleeve, not the PCB width - please measure the sleeved strip before ordering.
- Contact us for more details or to check which size suits your strips.
Specification
Item NO.
8MCWT1-C
10MCWT1-C

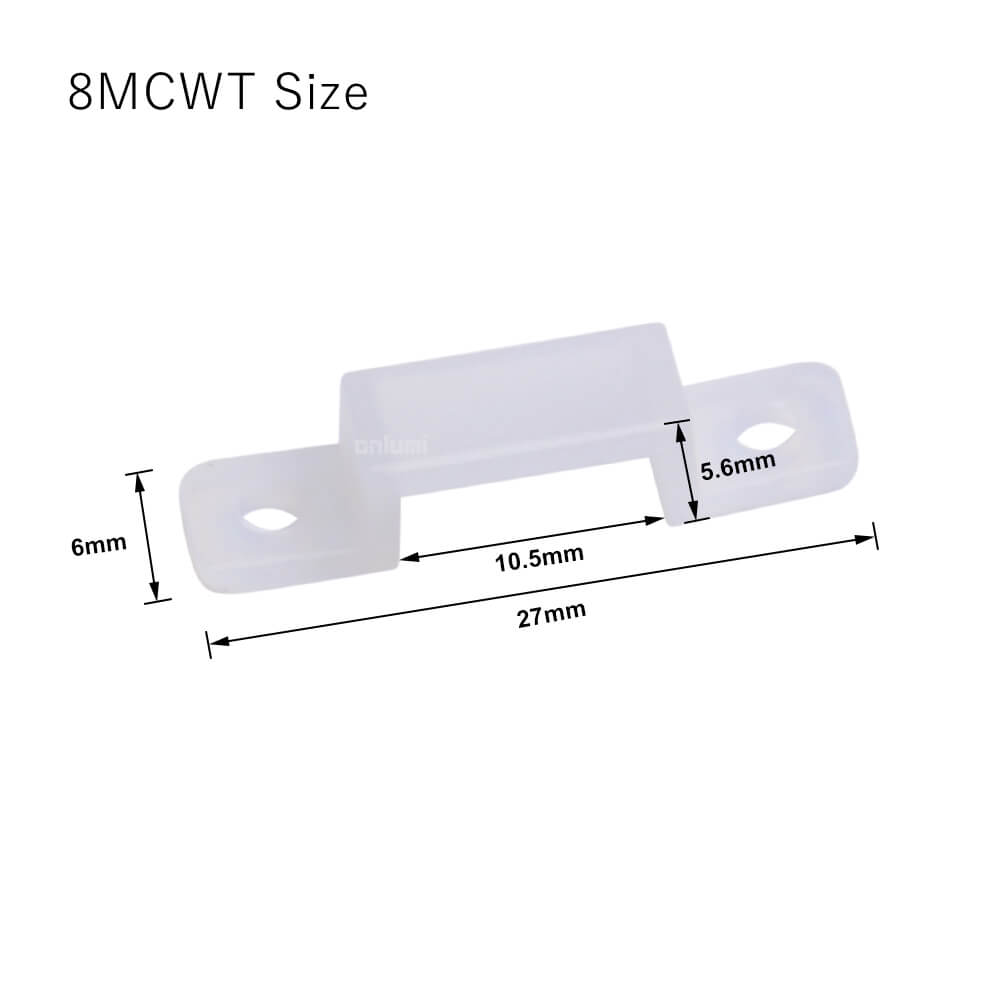

8MCWT
10MCWT
12MCWT
Strip Type
IP67/IP68
Inner Width
10.5mm
12.5mm
10.5mm
12.5mm
14.5mm
Color
Transparent
Transparent
Milky White
Milky White
Milky White
Material
PC
PC
Silicon
Silicon
Silicon
Fixing Method
Single Screw
Single Screw
Double Screw
Double Screw
Double Screw
Outer Dimension
20.5*7.5*5mm
22.5*7.5*5mm
27*6*5.6mm
29*6*5.6mm
31*6*5.6mm
Flame Retardant
UL-94-V0
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
