3 Pins PVC Red-White-Yellow 1007 Multiple Package
Brief Info
- Three-core ribbon wire in red, white, and yellow.
- For tunable-white (CCT) and similar three-wire LED lighting circuits, and for multi-core wiring in other fields.
- Three cores laid flat and parallel as a ribbon wire — neatly arranged and easy to route.
- Stranded tin-plated copper conductors with flame-retardant PVC insulation resist oxidation, take solder easily, and stay soft and easy to bend.
- A UL Recognized AWM wiring material.
- Three color-coded cores make wiring order easy to read.
- Multiple wire gauges, lengths, and packaging options — from samples to full bulk rolls, all made to order.
- Contact us for more details or to check which spec fits your project.
Specification

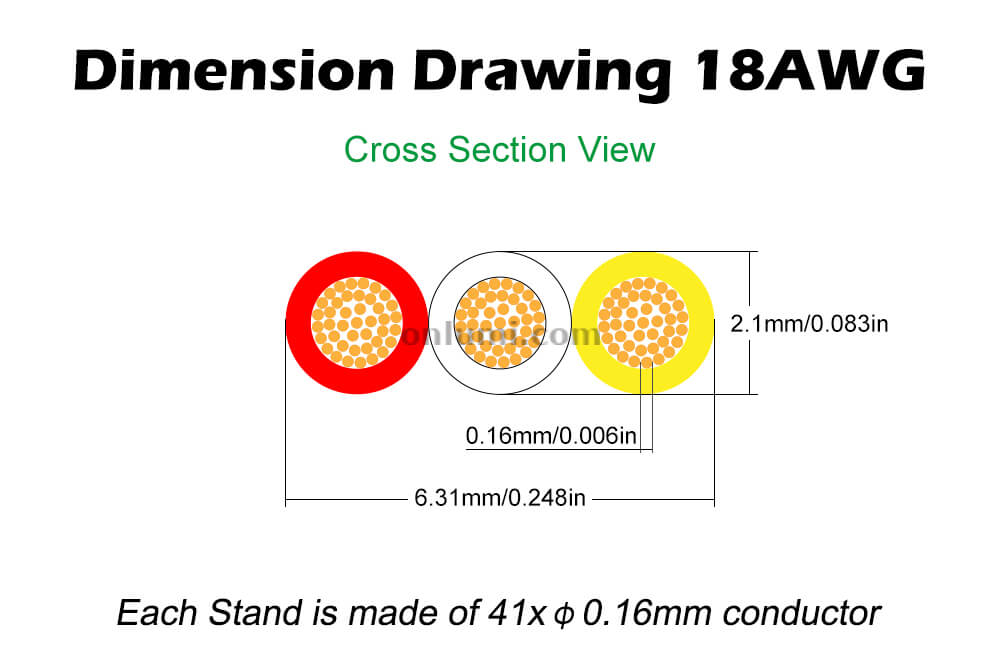

Part NO.
18A3P-RWY-6M
18A3P-RWY-10M
18A3P-RWY-25M
18A3P-RWY-50M
18A3P-RWY-100M
18A3P-RWY-305M
Wire Gauge
18AWG
18AWG
18AWG
18AWG
18AWG
18AWG
Wire Cross Section
0.78mm²
0.78mm²
0.78mm²
0.78mm²
0.78mm²
0.78mm²
Length
6M
10M
25M
50M
100M
305M
Package Method

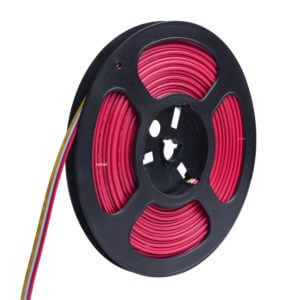

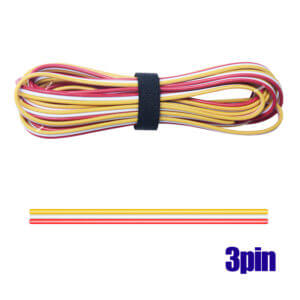

Tie, Bag, Plastic Reel
Tie, Bag, Plastic Reel

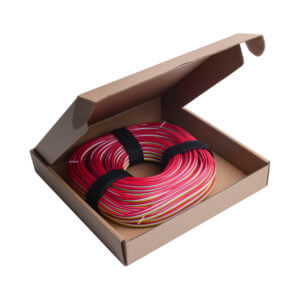

Tie, Bag, Box
Tie, Bag, Box, Plastic Spool
Plastic Spool, Film Wrap
Plastic Spool, Film Wrap
Core Quantity
3 Pins
Insulation Color
Red-White-Yellow
UL Style
1007
Construction Type
Flat Multi Strand
Conductor Construction
41*0.16mm
41*0.16mm
41*0.16mm
41*0.16mm
41*0.16mm
41*0.16mm
Conductor Diameter
1.0mm
1.0mm
1.0mm
1.0mm
1.0mm
1.0mm
Insulation Thickness
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
Outer Diameter (OD)
2.1mm
2.1mm
2.1mm
2.1mm
2.1mm
2.1mm
Conductor Material
Tinned Copper
Insulating Material
PVC (Polyvinyl Chloride)
Flame Rating
VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
1007 AWM 80°C 300V VW-1 FT1

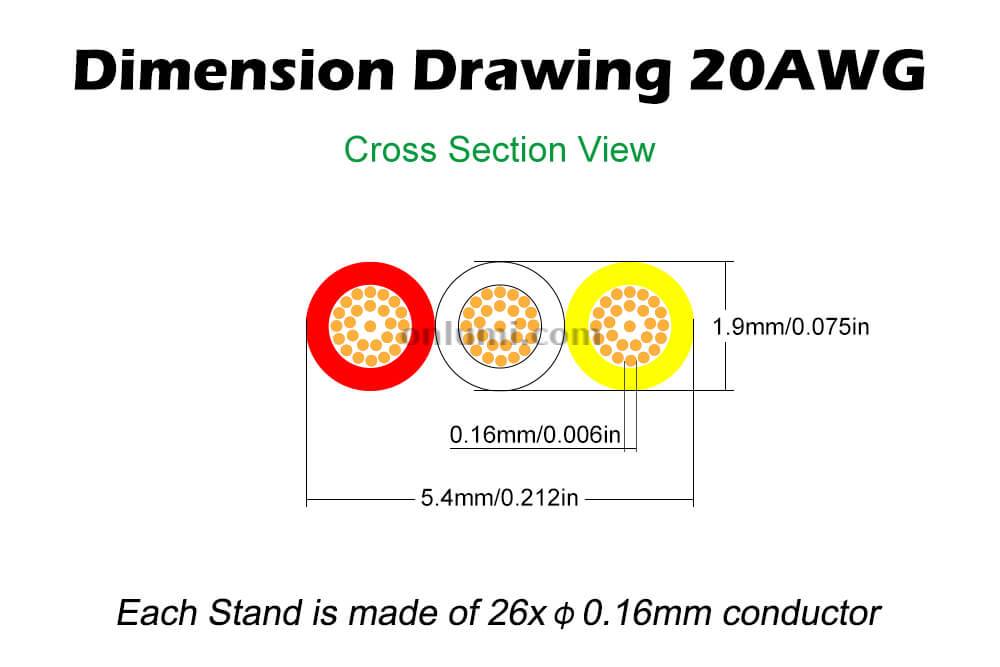

Part NO.
20A3P-RWY-6M
20A3P-RWY-10M
20A3P-RWY-25M
20A3P-RWY-50M
20A3P-RWY-100M
20A3P-RWY-305M
Wire Gauge
20AWG
20AWG
20AWG
20AWG
20AWG
20AWG
Wire Cross Section
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
0.52mm²
Length
6M
10M
25M
50M
100M
305M
Package Method
Tie, Bag, Plastic Reel
Tie, Bag, Plastic Reel
Tie, Bag, Box
Tie, Bag, Box, Plastic Spool
Plastic Spool, Film Wrap
Plastic Spool, Film Wrap
Core Quantity
3 Pins
Insulation Color
Red-White-Yellow
UL Style
1007
Construction Type
Flat Multi Strand
Conductor Construction
26*0.16mm
26*0.16mm
26*0.16mm
26*0.16mm
26*0.16mm
26*0.16mm
Conductor Diameter
0.81mm
0.81mm
0.81mm
0.81mm
0.81mm
0.81mm
Insulation Thickness
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
0.43mm
Outer Diameter (OD)
1.9mm
1.9mm
1.9mm
1.9mm
1.9mm
1.9mm
Conductor Material
Tinned Copper
Insulating Material
PVC (Polyvinyl Chloride)
Flame Rating
VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
1007 AWM 80°C 300V VW-1 FT1

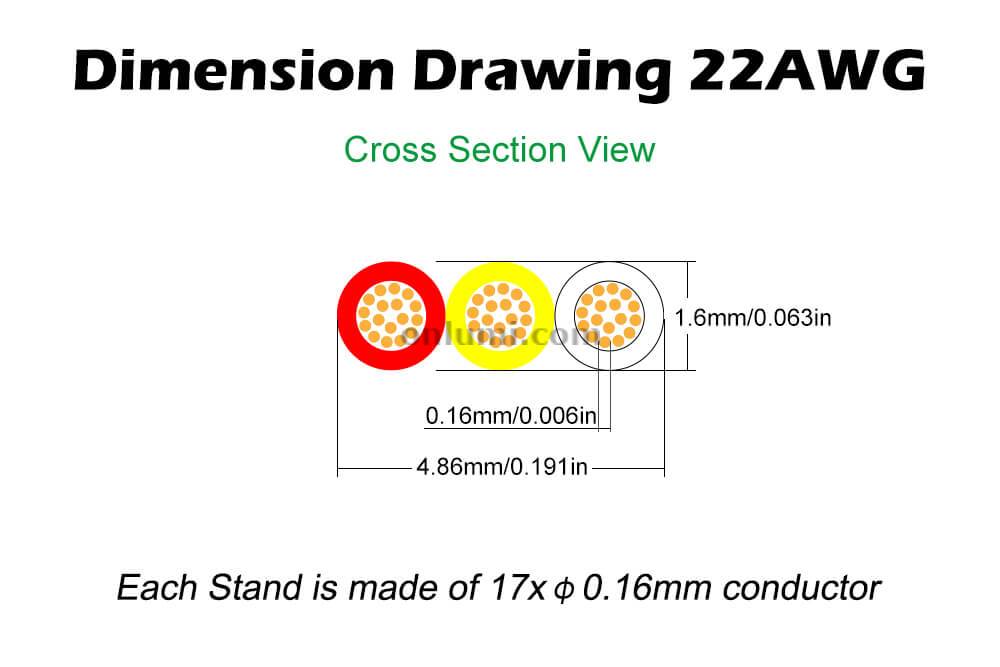

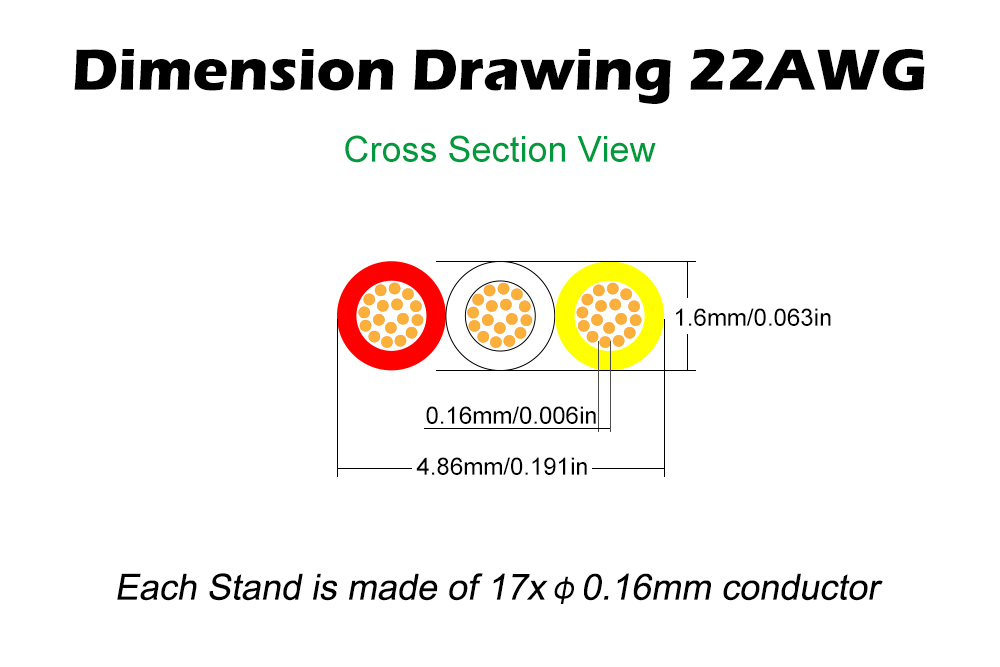

Part NO.
22A3P-RWY-6M
22A3P-RWY-10M
22A3P-RWY-25M
22A3P-RWY-50M
22A3P-RWY-100M
22A3P-RWY-305M
Wire Gauge
22AWG
22AWG
22AWG
22AWG
22AWG
22AWG
Wire Cross Section
0.32mm²
0.32mm²
0.32mm²
0.32mm²
0.32mm²
0.32mm²
Length
6M
10M
25M
50M
100M
305M
Package Method
Tie, Bag, Plastic Reel
Tie, Bag, Plastic Reel
Tie, Bag, Box
Tie, Bag, Box, Plastic Spool
Plastic Spool, Film Wrap
Plastic Spool, Film Wrap
Core Quantity
3 Pins
Insulation Color
Red-White-Yellow
UL Style
1007
Construction Type
Flat Multi Strand
Conductor Construction
17*0.16mm
17*0.16mm
17*0.16mm
17*0.16mm
17*0.16mm
17*0.16mm
Conductor Diameter
0.64mm
0.64mm
0.64mm
0.64mm
0.64mm
0.64mm
Insulation Thickness
0.42mm
0.42mm
0.42mm
0.42mm
0.42mm
0.42mm
Outer Diameter (OD)
1.8mm
1.8mm
1.8mm
1.8mm
1.8mm
1.8mm
Conductor Material
Tinned Copper
Insulating Material
PVC (Polyvinyl Chloride)
Flame Rating
VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
1007 AWM 80°C 300V VW-1 FT1
Interested in this product?
Contact us for pricing and technical support
