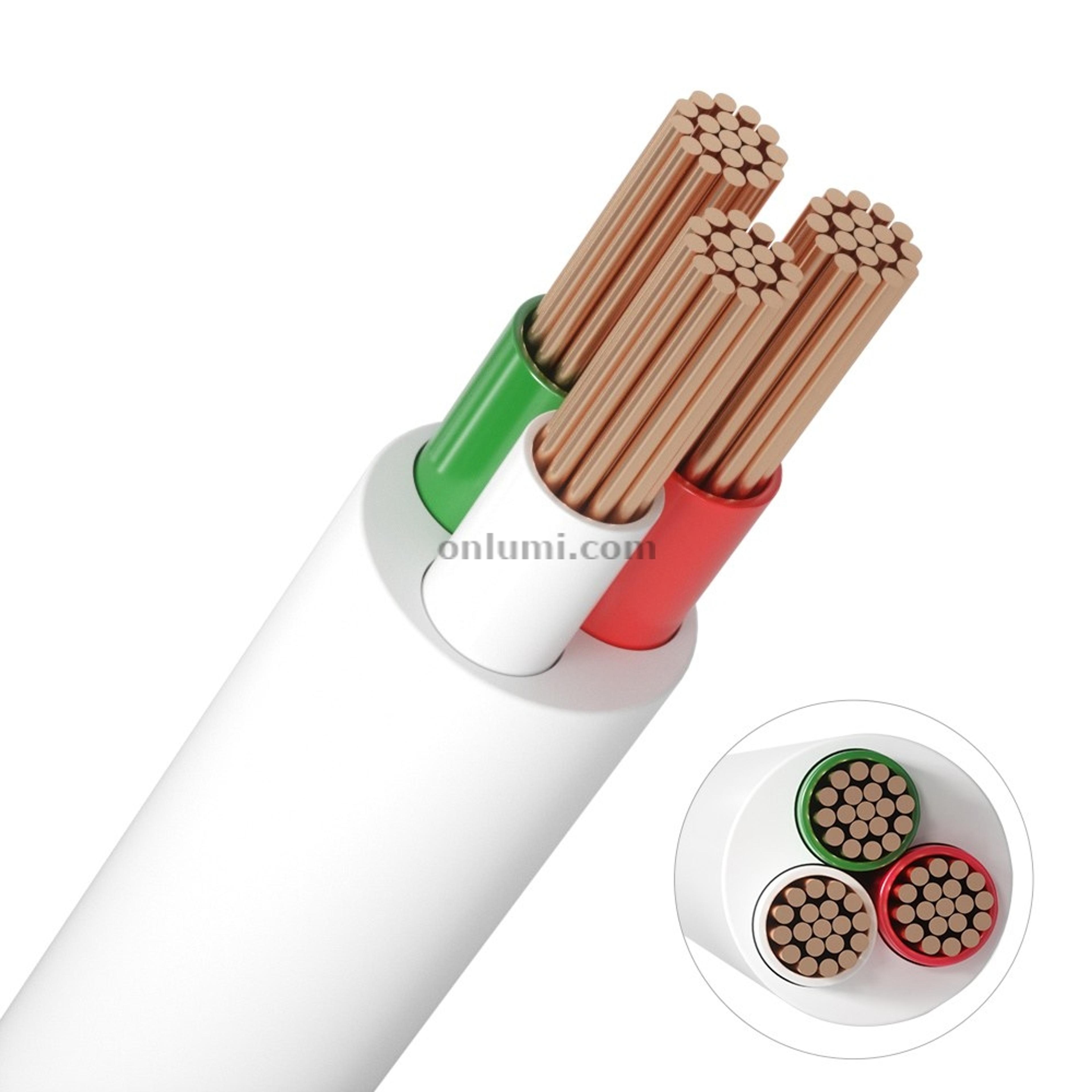

3 Pins PVC Red-Green-White 2464 Multiple Package
Brief Info
- Three-core sheathed cable with red, green, and white inner cores.
- For tunable-white (CCT) and similar three-wire LED lighting circuits, and for multi-core wiring in other fields.
- Three colored inner cores wrapped in one PVC jacket form a single tidy cable, adding a layer of mechanical and environmental protection.
- Stranded bare-copper conductors with flame-retardant PVC insulation stay soft and easy to bend.
- A UL Recognized AWM wiring material.
- Three color-coded cores make wiring order easy to read; outer jacket available in black or white.
- Multiple wire gauges, lengths, and packaging options — from samples to full bulk rolls, all made to order.
- Contact us for more details or to check which spec fits your project.
Specification
Item NO.
J1H-18A3C-RGW-100M
J1H-18A3C-RGW-305M
J1H-20A3C-RGW-100M
J1H-20A3C-RGW-305M
J1H-22A3C-RGW-100M
J1H-22A3C-RGW-305M
Wire Gauge
18AWG
18AWG
20AWG
20AWG
22AWG
22AWG
Wire Cross Section
0.78mm²
0.78mm²
0.52mm²
0.52mm²
0.32mm²
0.32mm²
Length per Roll
100M
305M
100M
305M
100M
305M
Package Method
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Outer Insulation Color
Black
Black
Black
Black
Black
Black
Core Quantity
3 Pins
Inner Insulation Color
Red-Green-White
UL Style
2464
Outer Diameter (OD)
5.0mm
5.0mm
4.0mm
4.0mm
3.5mm
3.5mm
Conductor Construction
41*0.16mm
41*0.16mm
26*0.16mm
26*0.16mm
17*0.16mm
17*0.16mm
Conductor Type
Multiple Strand
Conductor Material
Bare Copper
Outer Insulation Material
PVC (Polyvinyl Chloride)
Inner Insulation Material
PVC (Polyvinyl Chloride)
Outer Jacket Thickness
0.5mm (18AWG)
0.5mm (18AWG)
0.38~0.44mm (20/22AWG)
0.38~0.44mm (20/22AWG)
0.38~0.44mm (20/22AWG)
0.38~0.44mm (20/22AWG)
Inner Insulation Thickness
0.24~0.32mm
Flame Rating
UL1581: VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
AWM 2464 80℃ 300V VW-1
Item NO.
J1W-18A3C-RGW-100M
J1W-18A3C-RGW-305M
J1W-20A3C-RGW-100M
J1W-20A3C-RGW-305M
J1W-22A3C-RGW-100M
J1W-22A3C-RGW-305M
Wire Gauge
18AWG
18AWG
20AWG
20AWG
22AWG
22AWG
Wire Cross Section
0.78mm²
0.78mm²
0.52mm²
0.52mm²
0.32mm²
0.32mm²
Length per Roll
100M
305M
100M
305M
100M
305M
Package Method
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Plastic Spool、Film Wrap
Outer Insulation Color
White
White
White
White
White
White
Core Quantity
3 Pins
Inner Insulation Color
Red-Green-White
UL Style
2464
Outer Diameter (OD)
5.0mm
5.0mm
4.0mm
4.0mm
3.5mm
3.5mm
Conductor Construction
41*0.16mm
41*0.16mm
26*0.16mm
26*0.16mm
17*0.16mm
17*0.16mm
Conductor Type
Multiple Strand
Conductor Material
Bare Copper
Outer Insulation Material
PVC (Polyvinyl Chloride)
Inner Insulation Material
PVC (Polyvinyl Chloride)
Outer Jacket Thickness
0.5mm (18AWG)
0.5mm (18AWG)
0.38~0.44mm (20/22AWG)
0.38~0.44mm (20/22AWG)
0.38~0.44mm (20/22AWG)
0.38~0.44mm (20/22AWG)
Inner Insulation Thickness
0.24~0.32mm
Flame Rating
UL1581: VW-1, FT1
Rated Voltage
300V
Temperature Resistance
80℃
Operating Temperature
-20℃ ~ +80℃
Conductor Resistance
≤ 21.4 Ω/km (20℃)
Withstand Voltage Test
2000V AC / 1 Minute, No Breakdown
Insulation Resistance
≥ 20 MΩ·km (20℃)
Flexibility (Bending Test)
≥ 10,000 cycles (UL 1581)
Aging Resistance
No cracking after 80℃ × 168h
Printed Marking
AWM 2464 80℃ 300V VW-1
