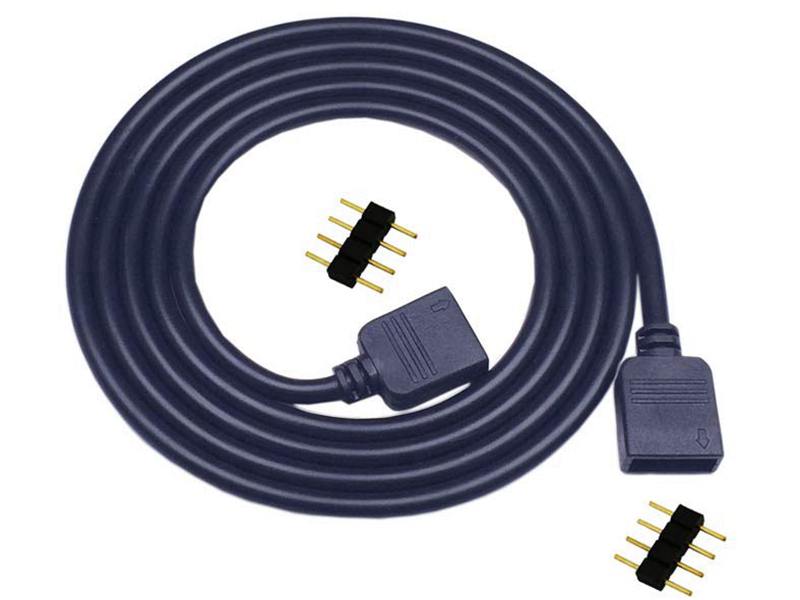

IP20 Flat Pin Extender Connector

Model NO.	Types	Connective Position
WFP-DMF20-F	Extender	Between two connectors with wire with Lock fix
HFP-DMF20-F	Extender	Between two connectors with wire with Lock fix
WFP-MF20-F	Extender	Between two connectors with wire without Lock fix
HFP-MF20-F	Extender	Between two connectors with wire without Lock fix

Item NO.	Type	Pin Avilable	Workable Wire	Wire Shape	Voltage & Current	Housing Color	Material	Fixing Method	IP Rating
WFP-DMF20-F	Extender connector	2Pins-6Pins	22~20AWG/0.32~0.35mm²	Flat Parallel / Round Sheathed	36V/2A	White	PVC& Copper & Plastic	With Lock	IP20
HFP-DMF20-F	Extender connector	2Pins-6Pins	22~20AWG/0.32~0.35mm²	Flat Parallel / Round Sheathed	36V/2A	Black	PVC& Copper & Plastic	With Lock	IP20
WFP-MF20-F	Extender connector	2Pins-6Pins	22~20AWG/0.32~0.35mm²	Flat Parallel / Round Sheathed	36V/2A	White	PVC& Copper & Plastic	Without Lock	IP20
HFP-MF20-F	Extender connector	2Pins-6Pins	22~20AWG/0.32~0.35mm²	Flat Parallel / Round Sheathed	36V/2A	Black	PVC& Copper & Plastic	Without Lock	IP20

Title	Language	Size	Type

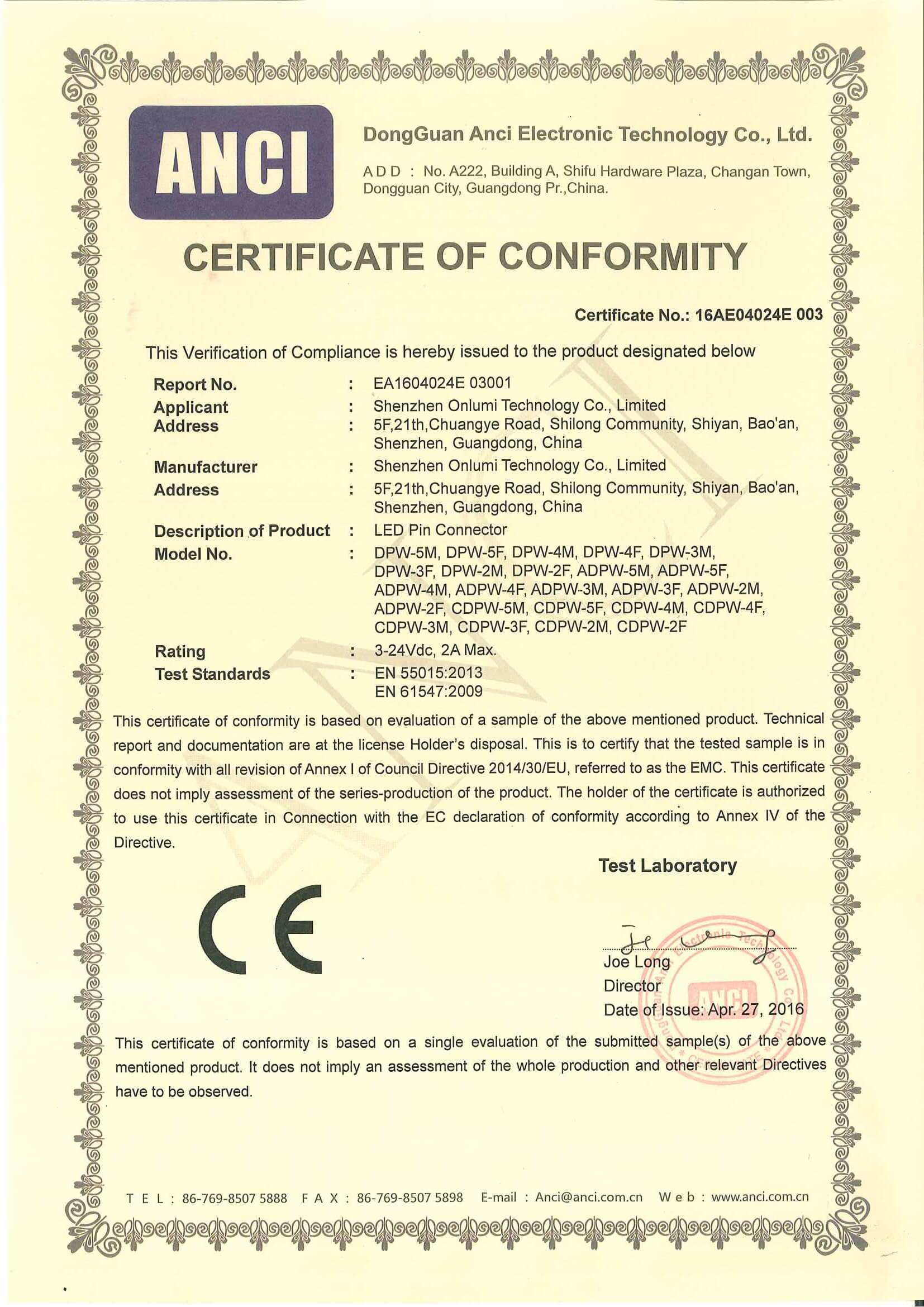

Flat Pin Connector -16AE04024E 003 EMC Cert	English	295kb	pdf

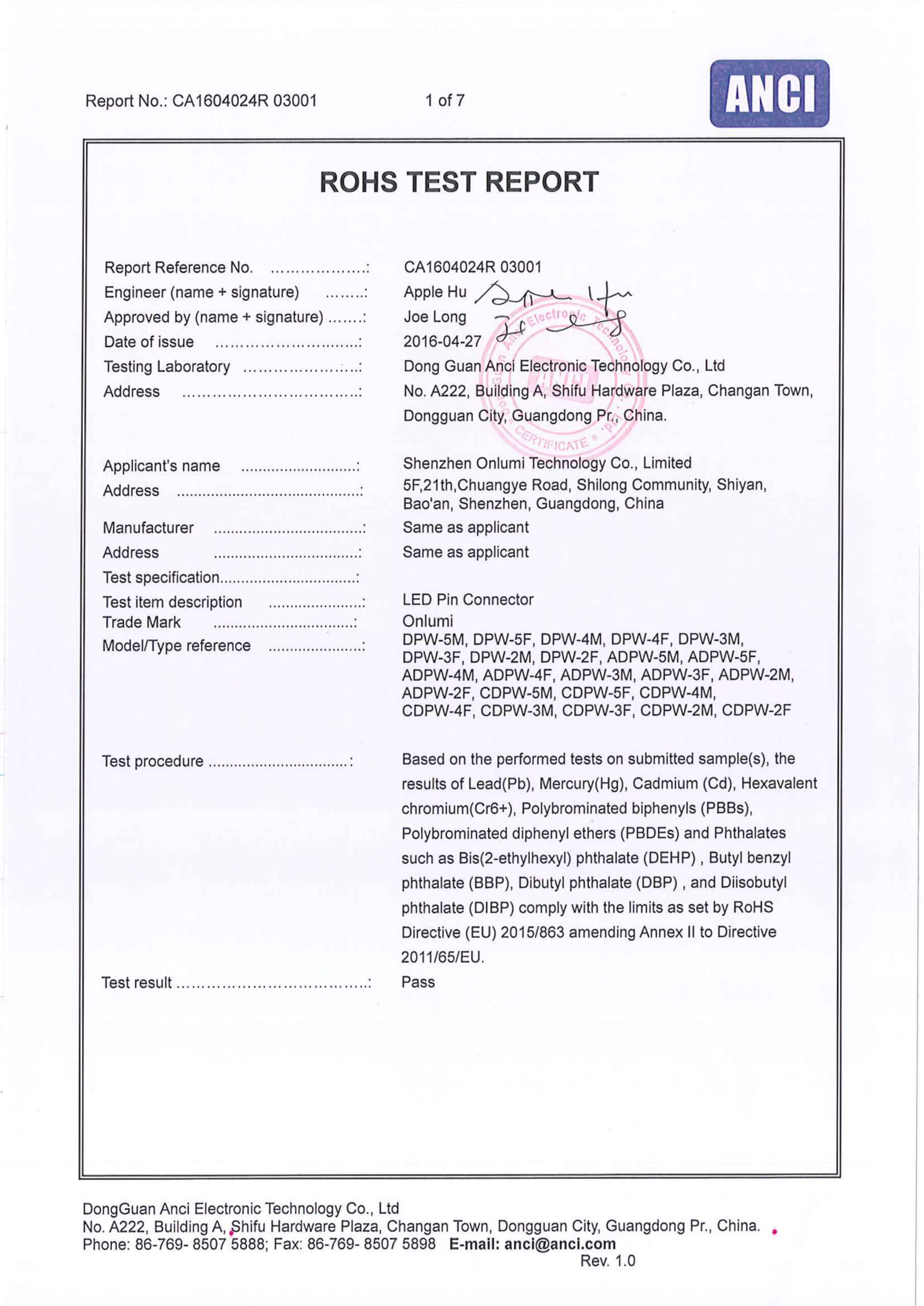

Microsoft Word - LED Pin Connector CA1604024R 03001 RoHS report	English	222kb	pdf
Flat-Pin-Connector-EA1604024E-03001-EMC-Report-1-scaled	English	190kb	pdf
