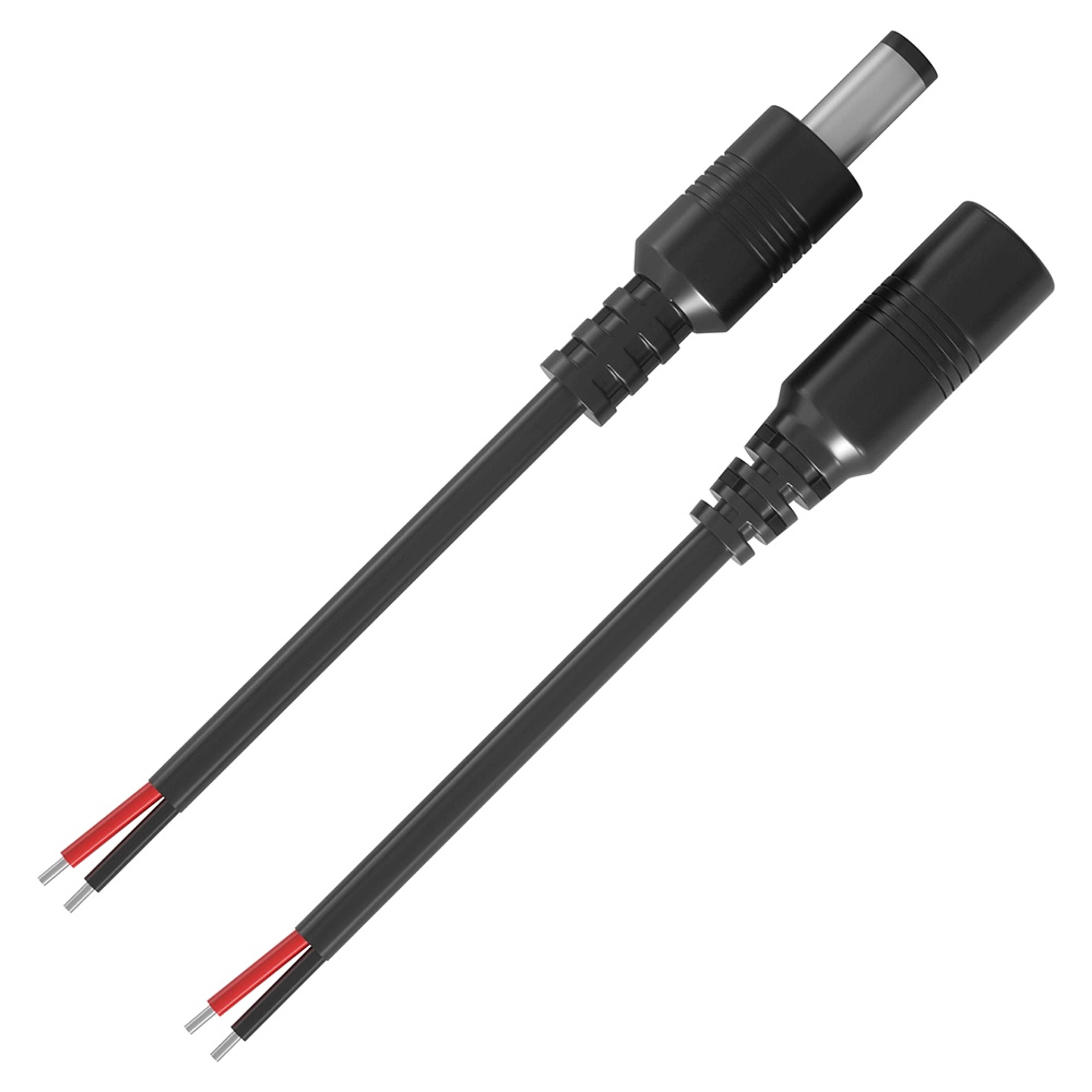

IP20 DC 5521 Connector Cable
Brief Info
- Ready-made DC 5.5×2.1 barrel-connector cable for linking, extending and splitting DC power.
- The extender type has a male end and a female end to lengthen an existing DC power run.
- The pigtail type brings out a single male or female end, adding a standard DC connector to a supply or fixture.
- The splitter type fans one female input out to several male outputs, driving multiple runs from one supply.
- An optional locking connector holds fast to resist drops from vibration or pulling.
- Supplied as a finished cable assembly with connectors already terminated — no soldering, just plug in.
- Contact us for more details or to check which type suits your wiring.
Specification
Item NO.
H5521DMF-J1
H5521DF-J1
H5521DM-J1
H5521D1F2M-J1
H5521D1F3M-J1
H5521D1F4M-J1
Connection Type
Extender
Pigtail
Pigtail
Splitter
Splitter
Splitter
Connector Gender
Male, Female
Female
Male
Male, Female
Male, Female
Male, Female
Fixing Method
Without Lock
Without Lock
Without Lock
Without Lock
Without Lock
Without Lock
Split Configuration
—
—
—
1 Female to 2 Males
1 Female to 3 Males
1 Female to 4 Males
Standard Wire Length
150mm
150mm
150mm
200mm
200mm
200mm
Wire Gauge
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
Wire Cross Section
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
Pin QTY.
2 Pins
Wire
UL 2464 black jacket wire, black-red inner wire
Max Voltage
DC 48V
Max Current
5A
Housing Color
Black
Material
PVC & Copper
IP Rating
IP20
Item NO.
H5521AMF-J1
H5521AF-J1
H5521AM-J1
H5521A1F2M-J1
H5521A1F3M-J1
H5521A1F4M-J1
Connection Type
Extender
Pigtail
Pigtail
Splitter
Splitter
Splitter
Connector Gender
Male, Female
Female
Male
Male, Female
Male, Female
Male, Female
Fixing Method
With Lock
With Lock
With Lock
With Lock
With Lock
With Lock
Split Configuration
—
—
—
1 Female to 2 Males
1 Female to 3 Males
1 Female to 4 Males
Standard Wire Length
150mm
150mm
150mm
200mm
200mm
200mm
Wire Gauge
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
24AWG, 22AWG, 20AWG, 18AWG
Wire Cross Section
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
0.2mm², 0.32mm², 0.52mm², 0.78mm²
Pin QTY.
2 Pins
Wire
UL 2464 black jacket wire, black-red inner wire
Max Voltage
DC 48V
Max Current
5A
Housing Color
Black
Material
PVC & Copper
IP Rating
IP20
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
Interested in this product?
Contact us for pricing and technical support
