Power Distributor for PWJ

Distribution base that pairs with strip-free PWJ plugs to expand one wire connection into 2, 3 or 4 branches.
Like the PWJ plugs, it needs no wire stripping or soldering — a standard clamp does the job.
Mounts by screw or by adhesive pad.
Contact us for more details or to find the distributor that fits your project.

Specification

Item NO.

PDB-12

PDB-13

PDB-14


Type

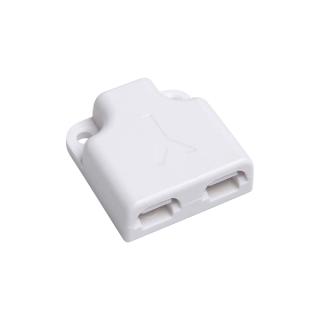

1 Split 2 Way

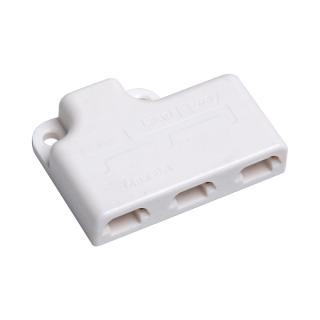

1 Split 3 Way

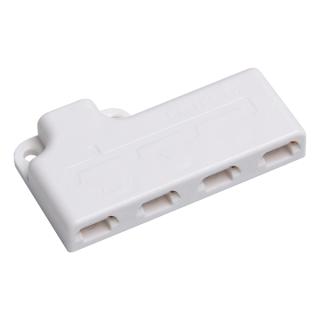

1 Split 4 Way

Pin Quantity

2 Pins

Branch Quantity

Workable Plugs

PWJ-I-2

Workable Wire Gauge

22~20 AWG

Workable Cross Section

0.32~0.52 mm²

Working Voltage

Below 36V

Max Current

6A (Total Box)

Outer Dimension

30.7*28*9.6mm

30.7*42.5*9.6mm

30.7*57*9.6mm

Housing Color

White

Material

Polycarbonate(PC), Copper

Fixing Method

Screw Fixing, Adhesive Tape Fixing

IP Rating

IP40
