DST 2 Pins 6-Output Parallel Power Distributor for ON2.54 (L814) Plug
Brief Info
- Six-output parallel distributor that feeds one supply to up to six LED light devices through ON2.54 (L814) plugs, in a white housing.
- More compact than comparable distributors — about 37% smaller on the 2-pin version.
- Strain relief where the wire is secured protects the solder joints between the wire and the board.
- Housing is made of flame-retardant material.
- The input accepts an L814 male or a DC5521 plug; a dual-white-cable version is also available for a cleaner all-white look.
- Contact us for more details or to find the distributor that fits your project.
Specification
Item NO.

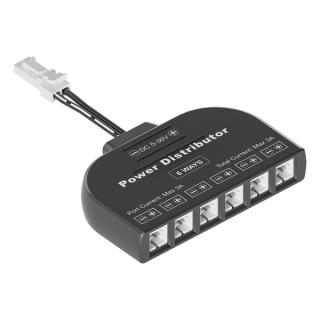

DST-16-L814W

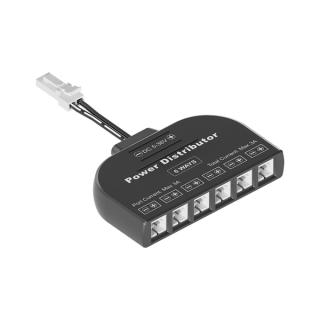

DST-16-L813/4W

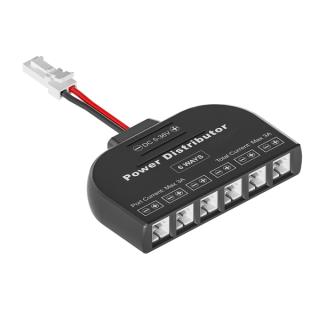

DST-16-L814W-BR

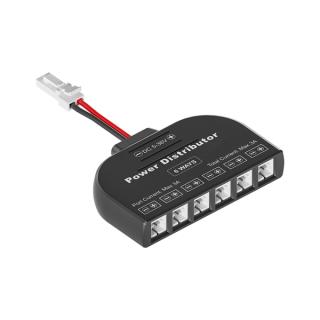

DST-16-L813/4W-BR

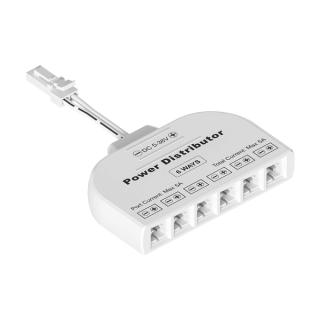

DST-16-L814W-WW

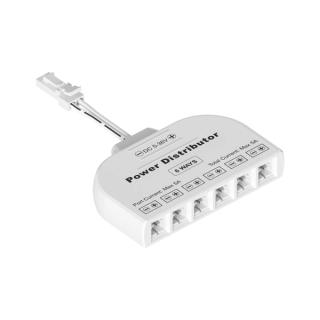

DST-16-L813/4W-WW
Input Connector Type
ON2.54(L814)
ON2.54(no hook)
ON2.54(L814)
ON2.54(no hook)
ON2.54(L814)
ON2.54(no hook)
Input Connector Gender
Male
Male
Male
Male
Male
Male
Input Connector Color
White
White
White
White
White
White
Output Connector Type
ON2.54(L814)
ON2.54(L814)
ON2.54(L814)
ON2.54(L814)
ON2.54(L814)
ON2.54(L814)
Output Connector Gender
Female
Output Connector Color
White
White
White
White
White
White
Branch Quantity
6 Ways
Output Circuit
Parallel
Working Voltage
DC 5~36V
Max Working Current
5A
5A
5A
5A
5A
5A
Current Note
depend on mated connectors
Standard Wire Gauge
20AWG
Standard Wire Cross Section
0.52mm²
Standard Input Wire Length
250mm
Wire Color
Dual Black
Dual Black
Black-Red
Black-Red
Dual White
Dual White
Mount Type
No Magnet
Housing Color
Black
Black
Black
Black
White
White
Material
Polycarbonate(PC), Copper, PVC
Housing Dimension
56.8*32.7*10.8mm
Item NO.

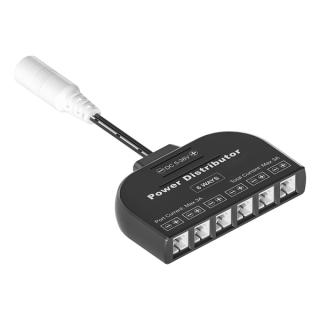

DST-16-5521W
DST-16-5521W-BR

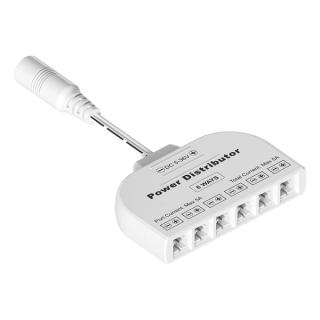

DST-16-5521W-WW
Input Connector Type
DC5521
DC5521
DC5521
Input Connector Gender
Female
Female
Female
Input Connector Color
White
White
White
Output Connector Type
ON2.54(L814)
ON2.54(L814)
ON2.54(L814)
Output Connector Gender
Female
Output Connector Color
White
White
White
Branch Quantity
6 Ways
Output Circuit
Parallel
Working Voltage
DC 5~36V
Max Working Current
5A
5A
5A
Current Note
depend on mated connectors
Standard Wire Gauge
20AWG
Standard Wire Cross Section
0.52mm²
Standard Input Wire Length
250mm
Wire Color
Dual Black
Black-Red
Dual White
Mount Type
No Magnet
Housing Color
Black
Black
White
Material
Polycarbonate(PC), Copper, PVC
Housing Dimension
56.8*32.7*10.8mm
