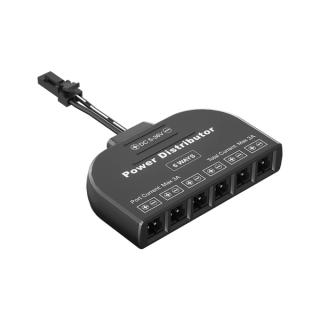

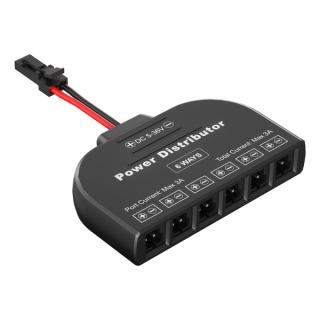

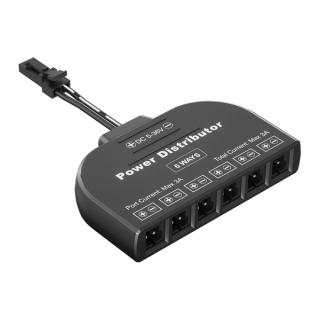

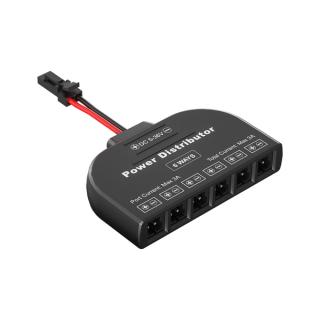

DST 2 Pins 6-Output Parallel Power Distributor for ON2.54 (L813) Plug
Brief Info
- Six-output parallel distributor that feeds one supply to up to six LED light devices through ON2.54 (L813) plugs, plug-and-play.
- More compact than comparable distributors — about 37% smaller on the 2-pin version.
- Strain relief where the wire is secured protects the solder joints between the wire and the board.
- Housing is made of flame-retardant material.

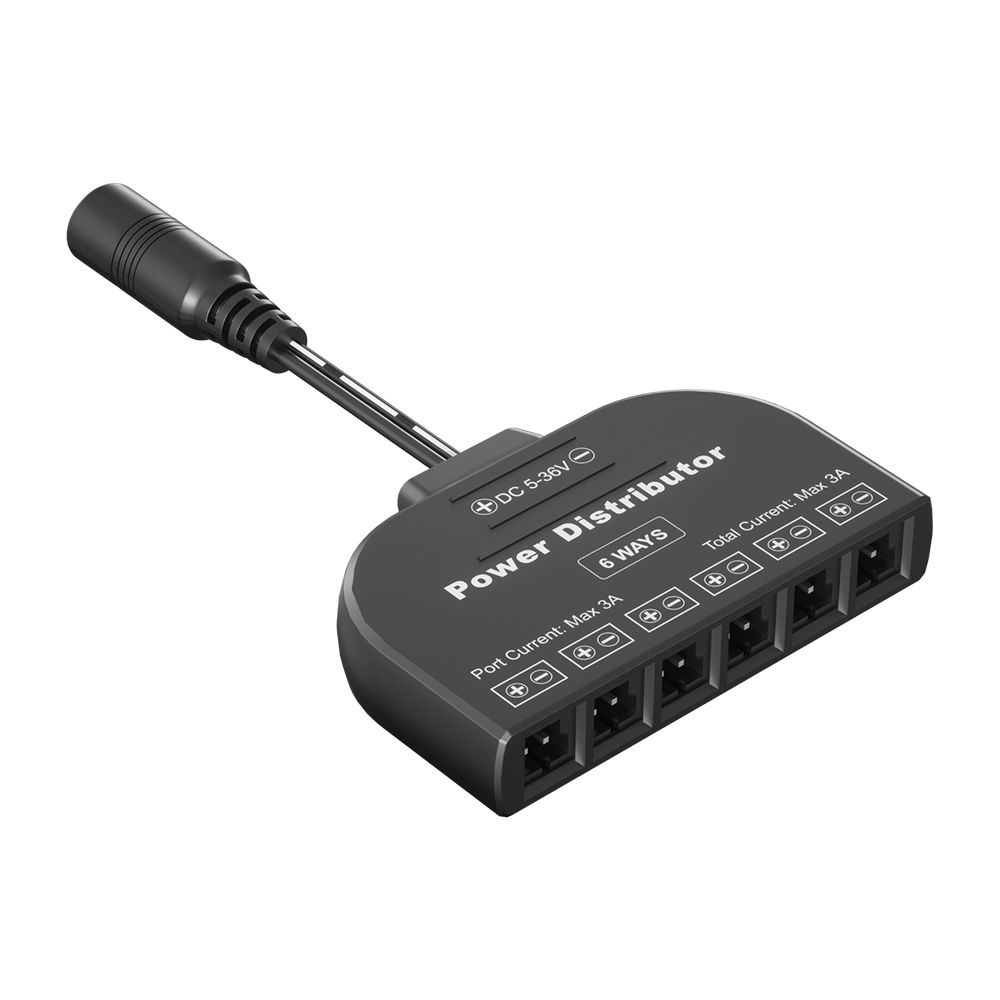

- The input accepts an L813 male or a DC5521 plug to match different power sources.
- Contact us for more details or to find the distributor that fits your project.
Specification
Item NO.
DST-16-L813H
DST-16-L813/4H
DST-16-L813H-BR
DST-16-L813/4H-BR
DST-16-5521H
DST-16-5521H-BR
Input Connector Type
ON2.54(L813)
ON2.54(no hook)
ON2.54(L813)
ON2.54(no hook)
DC5521
DC5521
Input Connector Gender
Male
Male
Male
Male
Female
Female
Input Connector Color
Black
Black
Black
Black
Black
Black
Output Connector Type
ON2.54(L813)
ON2.54(L813)
ON2.54(L813)
ON2.54(L813)
ON2.54(L813)
ON2.54(L813)
Output Connector Gender
Female
Output Connector Color
Black
Black
Black
Black
Black
Black
Branch Quantity
6 Ways
Output Circuit
Parallel
Working Voltage
DC 5~36V
Max Working Current
5A
5A
5A
5A
5A
5A
Current Note
depend on mated connectors
Standard Wire Gauge
20AWG
Standard Wire Cross Section
0.52mm²
Standard Input Wire Length
250mm
Wire Color
Dual Black
Dual Black
Black-Red
Black-Red
Dual Black
Black-Red
Mount Type
No Magnet
Housing Color
Black
Black
Black
Black
Black
Black
Material
Polycarbonate(PC), Copper, PVC

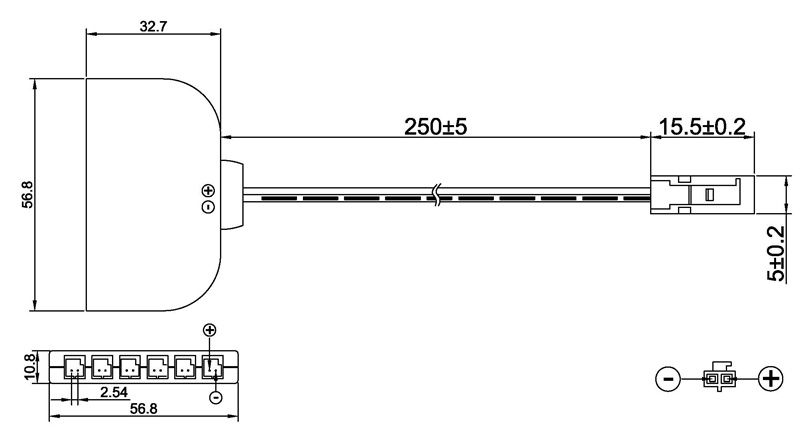

Housing Dimension
56.8*32.7*10.8mm
Interested in this product?
Contact us for pricing and technical support
