8mm 2 Pins for IP20 SMD/COB Mono
For IP20 Support CustomizationReusable
Brand:No Brand
MOQ:contact us for more details about MOQ
Customizable Options:WirePackageLabelConnector
Brief Info
- Corner PCB for 8mm mono LED strips — works with both COB and SMD.
- Typical uses: right-angle runs in cabinets and display cases, corners in aluminium-profile linear lighting, indoor cove lighting.
- Three corner shapes available: L-shape, T-shape and cross.
- Solder it directly, or use it with our solderless LED strip connectors.
- Made from flexible PCB, so it conforms to corners and uneven mounting surfaces.
- A thicker copper layer than comparable products on the market means more reliable conduction.
- Contact us for more details or to check compatibility with your LED strips.
Specification
Item NO.
FPC8-L2A
FPC8-T2A
FPC8-C2
Polarity Mark
+ -
+ -
+ -
Series Name
PCB Corner
LED Strip Width
8mm
Pin Quantity
2 Pins
Contact Method
Solder Contact, Surface Contact, Pierce Contact
Shape of Connection

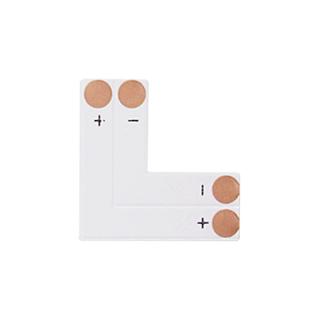

L Shape (90 Degree)

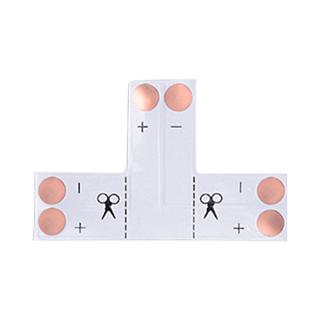

T Shape

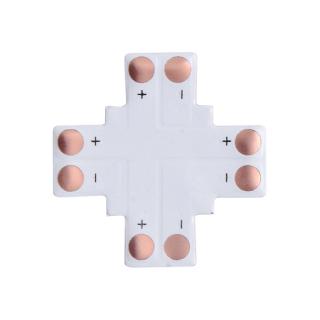

+ Shape (Cross)
LED Strip IP Rating
IP20 (Non-waterproof)
LED Strip Color
Mono
Max Working Voltage
DC24V
Max Working Current
4A
4A
3A
Current Note
max currents depend on multiple factors, pls contact us for more details working on your LED strips
LED Strip PCB Type
Flexible
Material
Copper
Copper
Copper
PCB Thickness
0.3mm
Copper Thickness
35um+70um
35um+70um
70um
PCB Size (L × W × H)
19*19*0.3mm
30*19*0.3mm
24*24*0.3mm
Available Package
Normal Bag
Box
Hanging Head
Face Seal Blister
Clamshell Blister
Interested in this product?
Contact us for pricing and technical support
